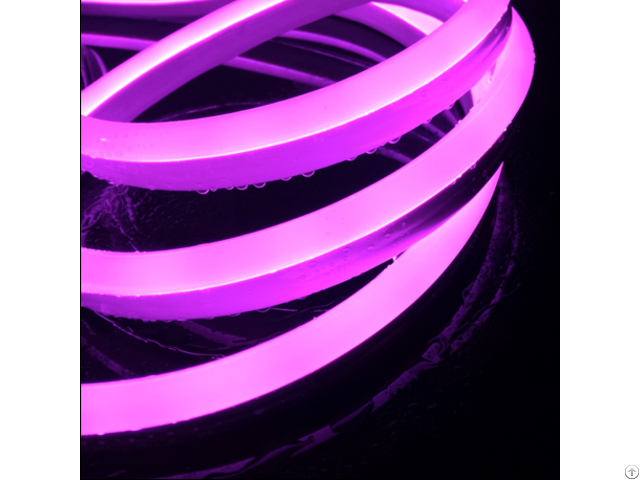

Domed Led Neon Flex - China

Product Description

Led Neon Flex is comprised of solid-state Light Emitting Diodes (LEDs) in series solder on Flexible PCB housed by an inner plastic extrusion core.

the light source has SMD2835 and SMD5050, An UV stable outer plastic jacket further protects the inner core.

The plastic jacket will be the translucent colored and the LED will be Red, Orange, Blue, Yellow, Green and White.

Base our patented technical, we produce the Neon Flex with a continuously color linear effect as well as Glass Neon.

Product Feature

LED NEON FLEX - HIGHLIGHTS :

1).

2 X Pure copper wire (0.75 sq .

m .

measure) as conducting wire, reducing line loss and volt.

drop , more stable & safer.

2).

Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp.

resistant .

3).

Complete kit including adapters, connectors & mounting clips enables easy installation.

4).

Flexible, bendable, unbreakable & cuttable (cut at cutting marks).

5).

SMD 2835 LED - 0.2W/LED (60mA) - Super Bright

6).

No cold weather start problems or color shift.

7).

Vivid NEON lighting effect, uniform light, no dots.

8).

Waterproof IP65 , ok for indoor / outdoor use.

9).

Eco-friendly, energy-effcient, durable, long-life.

Product Specification/Models

Model : OL-NF-240V ; OL-NF-120V; OL-NF-24V; OL-NF-12V

Volt: 240V AC; 120V AC; 24V DC; 12V DC

Mini Cut length : 0.858 m; 0.429 m; 0.143 m; 0.0715 m

Light source : 2835 SMD LED ( 0.2W / LED )

LED QTY : 84 LED / M

Power : 9 W/M

Dimension : 13.5mm x 27 mm

Beam angle : 270 °

Colors : red , green, ice blue, blue, golden yellow, yellow, warm white, cool white, pink

PVC Jacket : Milky white jacketed / Colored jacketed

Application

LED NEON FLEX _ APPLICATIONS :

- Path & contour marking _ Elegant interior decoration _ Backlighting for larger size ad-signs

- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting

- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting _ Bridge edge lighting

- Amusement park lighting _ theater lighting _ Emergency hallway lighting _ Building outlines

- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting _ Cove lighting

FAQ :

1 - How often can led neon flex be cut ?

- AC240V _ cut intervals : 0.858m ; AC120V _ cut intervals : 0.429m

- DC24V _ cut intervals : 0.143m ; DC12V _ cut intervals : 0.072m

( There're printed cutting marks on led neon flex, easy to cut.

)

2 - Max.

run length ?

- 240V /120V _ one power cable could load 50m in one continous line.

( 240V/120V , no need LED transformer, there's one small power convertor on power cable to convert AC to DC)

- DC24V _ max.

run length is 20m powered from one end ; 40m powered from both ends.

- DC12V _ max.

run length is 10m powered from one end ; 20m powered from both ends.

( If running too many meters, it will cause the volt.

drop, shorten the life of the LEDs and may damage the transformer.

)
