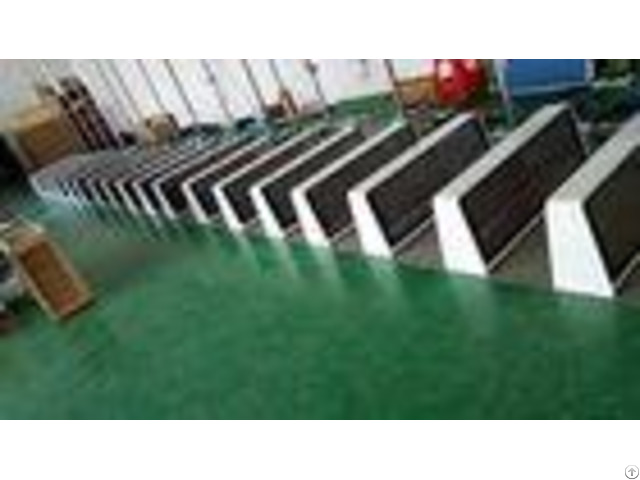

Double Sided P5 Taxi Top Led Sign Smd 3528 Full Color Waterproof Easy Maintenance - China

3G/4G outdoor double sides P5 waterproof taxi top led display Product Features: # # Well Designed Cooling System # Aluminum Casting with ultra thin, light weight design # Easy maintenance& IP65 design&long Lasting Display # Organized internal wire harnessing # Powerful control software # Supports flash, picture, video and text # 3G High Speed data Transfer # A variety of connection mode, real-time information publish.

Specifications of P5 taxi top led display: - - - - LED Module Specification | 1 | Pixel pitch | 5mm | 2 | Resolution | 40, 000 dots/sqm | 3 | LED composition | 1R 1G 1B | 4 | LED type | SMD3528 | 5 | Module size | W 160 H 160 mm | 6 | Module resolution | W 32 H 32 | 7 | Driving method | 1/8 scan constant current | Cabinet Specification | 8 | Cabinet size | W 105cm H 38cm T 23 cm (including the frame) | 9 | Cabinet resolution | W 192 H 64 | 10 | Cabinet quantity | W 1 H 1 | 11 | Cabinet material | Aluminum cabinet, totally waterproof front and rear, good material | 12 | Cabinet color | Black/Gray | 13 | Cabinet weight | 20.5KG/PC | 14 | Flatness | Less than 1mm juncture | Optical Parameters | 15 | Brightness | 3500CD/sqm | 16 | Viewing angle | Horizontal 140, vertical 140 | 17 | Mininum viewing distance | 5m | 18 | Gray scale | 1024 levels | 19 | Display color | 1.07 billion | 20 | Brightness adjustment | 0-100% 8 levels | Power Supply | 21 | Input voltage | DC9~36V | 22 | Output voltage | DC5V | 23 | Output rated current | 30A | 24 | Output rated power consumption | 600W | 25 | Power consumption(Ave.

) | 200W/piece | 26 | Power consumption(Max.

) | 700W/piece | Control System | 27 | Control method | Asynchronous control (Updating content can be through USB disk, WIFI, 3G) | 28 | Refresh rate | 240~1000HZ | 29 | Refresh frame frequency | 60~85HZ | 30 | Support VGA mode | 1024 x 768, 1280 x 1024, 1600 x 1200 | 31 | Brightness correction | Dot by dot, module by module, cabinet by cabinet | Formats Supported | 32 | Video | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV | 33 | Animation | GIF, SWF | 34 | Picture | JPG, BMP, WMF | Reliablity | 35 | Protection grades | IP65 | 36 | Work temperature | -20+60C | 37 | Humidity(RH) | 10~95% | 38 | Life span | 100, 000 hours | 39 | MTBF | 0.0001 | 40 | Out of control dot rate | 1/10, 000 | - - - - Our Services Quality Guarantee Warrant time is 2 years, during this period; we will maintain and replace the defect components for free, if the damage is caused by fault operation, you need to pay for cost.

After warranty time is over, we will offer you component parts at our bottom cost Technical Support We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

All operation manual, software, test reports are available.

Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

If need, we can send our engineer to your side for instruction, and clients should pay the cost about engineers trip.

Free Training You can send your engineers to our factory for one week free of charge training, such as: soft operation, led video processor configure, installation, adjustment, basic repairing and so on.
