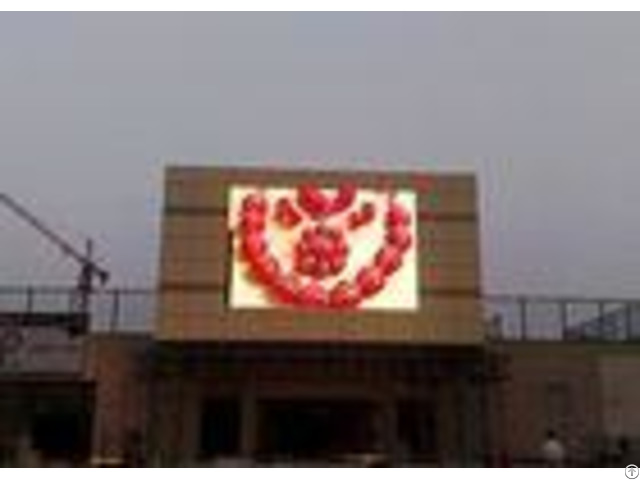

Electronic Programmable Outdoor Advertising Led Display Screen For Trade Show - China

Electronic Programmable Outdoor Advertising LED Display Screen for Trade Show Product Description 1 .

Wide Application Field: advertising LED display, Stadium perimeter LED display, shopping mall LED display, Stage rental performances and so on 2 .

First-class LED chip: Supplied by Silan, cree& other high strictly selected LED chip to ensure the long life time and high brightness 3 .

Clear Vivid Image Quality: wavelength of Green light is between 520-530nm, which guarantee the led display get close to nature color.

4 - Long-term Brightness: 6000-nit brightness(for outdoor full color) throughout product lifetime of the LED display P10 Outdoor Full Color LED display Super brightness waterproof outdoor P10 Led module display

Full color (RGB) 160*160*34mm or320*160 * 34mm Led Lamp Spec.

Led Configuration : 1R1G1B

Led Brand : TW Technical Data: - - - -

No.

| ITEM | P10 | P16 | P20 | P25 | 1 | Pitch | 10mm | 16mm | 20mm | 25mm | 2 | Pixel density | 10000pixels/ | 3906pixels/ | 2500pixels/ | 1600pixels/ | 3 | Module size | 1280mm*960mm | 1024mm*1024mm | 1280mm*1280mm | 800mm*800mm | 4 | Panel pixel | 128*96 | 64*64 | 64*64 | 32*32 | 5 | Power consumption | 100W1500W/ | 100W1200W/ | 100W800W/ | 100W500W/ | 6 | View distance | 8--150m | 10--200m | 15--200m | 25--200m | 7 | Pixel configuration | 1R 1G 1B | 2R 1G 1B | 2R 1G 1B | 2R 1G 1B | 8 | Brightness | 6500cd/ m2 | 9 | Screen weight | <65kg/m2

(not including external frame) | 10 | Grey scale | 65536degree | 11 | Display mode | VGA640X480VGA1600X1024 | 12 | Life time | 100, 000 | 13 | Control distance | 120 m (no repeating); Optical fiber transmission: 500m- 20km | 14 | Operating temperature | 25+60 | 15 | Operating humidity | 10%95%RH | 16 | Control mode | Synchronized with computer monitor | 17 | Drive mode | constant current driving, static scan | 18 | Accepting signal | PAL/NTSC/SECAMS-VideoVGAR GBComposite VideoSDI | 19 | Systems operating platforms | Windows98/Me/2000/Xp | 20 | Brightness adjustment | 64 level automatic or manual | - - - - Product description :

Led display, led module, LED panel

1, Other outdoor items: P8, P10, P12, P16, P18, P20, P25, P31.25.

2, led module, led cabinet can be designed by special requireents.

3, Life time 11 years.

4, 6 years not need maintain.

5, Warranty 1 - 3 years.

Feature: 1 - Applications: The applications for Multi Line Displays are endless.

2 - Up-dated Multi Line LED Electronic Displays are easy to use and can be up-dated quickly and with no technical expertise

3 - Character heights: Available in a variety of character heights: although if you have a multi line display made up from a number of Bi-Line displays, you can show a single line of text in double height format which will usually double these heights.

Larger height signs are also available.

4 - Color: Besides of full color, LED Colour Options areRED, GREEN, YELLOW, or TRI-COLOUR, blue and white are also available.

5 - Various speed and Characters : The signs can display most different Characters and Graphic Symbols.

The signs can run at variable Speeds, and have various display features including Bold, Run Left/Right etc.

"

6 - Can be controlled remotely, like WIFI, GSM, GPRS, 3G, 4G, 5G
