Gjyxch G 657a1 Self Supporting Fiber Optic Cable Flexible With High Bandwidth - China

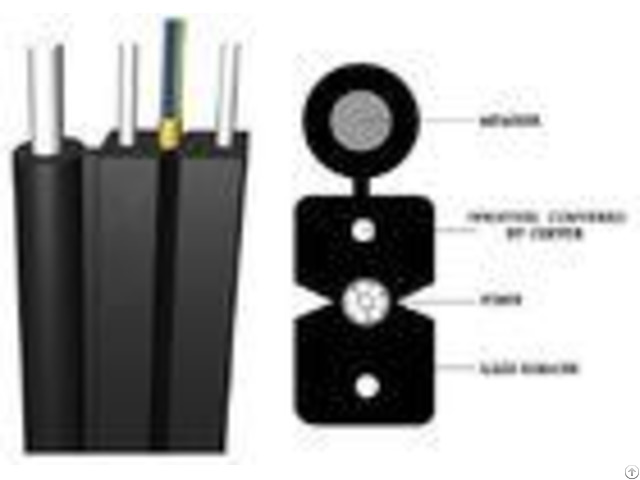

FTTH Self-support cable The optical fiber unit is positioned in the centre.

The parallel fiber reinforced plastics (FRP) or 2pcs steel wire are placed at the two sides.

A steel wire as the additional strength member is also applied.

Then the cable is completed with a black or color LSZH sheath.

Characteristics: 1 - Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2 - Two parallel FRP ensure good performance of crush resistance to protect the fiber.

3 - Single steel wire as the additional member ensure good performance of tensile strength 4 - Simple structure, light weight and high practicability 5 - Novel flute design, easily strip and splice, simplify the installation and maintenance 6 - Low smoke, zero halogen and flame retardant sheath., Technical Advantages & Application: 1 - Access network, fiber to the home.

2 - Support the internet, CATV and telephone 3 - High bandwidth, easily reach 100M 4 - Flexible network construction, reduce the cost of installation and maintenance, convenient for network management.

5 - Usable equipment ports, easy to increase the user and expand accommodates gradually.

6 - Support more network increase service in future.

Mechanical Technical Parameters: - - - - Fiber count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile (N) Long/ Short term | Crush (N/100mm) Long/ Short term | Min.

Bend Radius (mm) Dynamic/ Static | 1 | (2.00.2)(5.00.2) | 18 | 300/600 | 1000/2000 | 15/30 | 2 | (2.00.2)(5.00.2) | 19 | 300/600 | 1000/2000 | 15/30 | 4 | (2.00.2)(5.30.2) | 21 | 300/600 | 1000/2000 | 15/30 | 6 | (2.00.2)(6.50.2) | 22 | 300/600 | 1000/2000 | 15/30 | 8 | (2.00.2)(6.80.2) | 23 | 300/600 | 1000/2000 | 15/30 | 12 | (2.00.2)(7.80.2) | 26 | 300/600 | 1000/2000 | 15/30 | Note: Range of temperature: -30~+70 | - - - - Optical Characteristics - - - - Glass Type | 62.5/125um | 62.5/125um | 50/125um | 50/125um | 50/125um | SM(G652) | Grade B | Grade A | Grade B | Grade A | OM3 | G.

652C/D | P/N Code(X) | 62B | 62A | 50B | 50A | OM3 | 09C/D | Operating | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 1310/1550nm | Wavelength | Bandwidth | 160/500 | 200/600 | 200/500 | 400/800 | 1500/500 | - | (MHz.

km) | Attenuation | 3.50/1.50 | 3.20/1.20 | 3.20/1.20 | 3.00/1.00 | 2.70/0.80 | 0.45/0.30 | (dB/km) | Link Length | 200/500 | 275/550 | 500/550 | 550/550 | 10004/600 | - | For 1000M | Link Length | - | - | - | - | 300/- | - | For 10G | - - - - Note: - - - - | 1 - The colour identification of the buffer layer complies with the standard colour identification set in GB13993.3-2001 Standard | 2 - S: short term; L: long term; L.

T: loose tube | 3 - Crush load: N/100mm; D: cable diameter | - - - -
