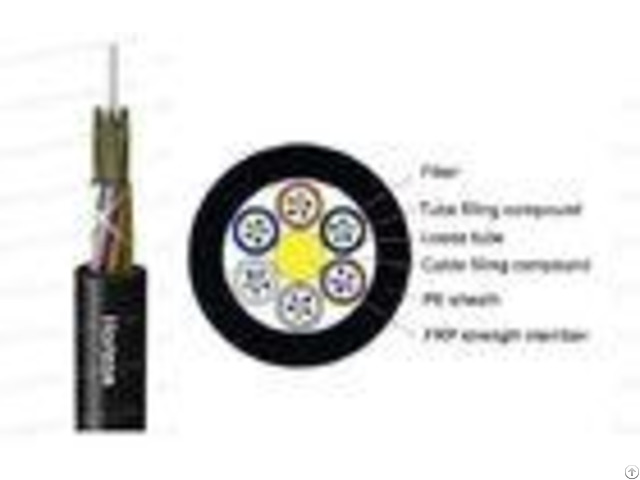

Gyfty Loose Tube Single Jacket Non Armored Cable - China
price: check with company for price
Description: Product Name: GYFTY Loose Tube Single Jacket Non-Armored Cable Model: GYFTY Application: Adopted to outdoor duct and aerial applications.
Adopted to trunk power transmission system.
Adopted to access network and local network in high electromagnetic interfering places.
Features: Non-metal strength member.
Filler protect loose tuber fiber.
Non-metal strength has an excellent anti-electromagnet ability.
Technical Parameters: - - - - Fiber Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature | (MM) | (KG) | short term | long term | short term | long term | short term | long term | () | 24 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 36 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 42 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 48 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 60 | 9.8 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 72 | 10.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 96 | 14.5 | 145.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | 144 | 18.3 | 185.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | - - - - Order Information: # Cable type: SM or MM( Sinlge-mode: yellow; Multi-mode: orange;options available for other colours # Fiber Type: SM(G652D, G655C, G657A1, G657A2, G657B3) MM(OM1, OM2, OM3, OM4) # Fiber count: 24-144 # Cable length: 2000M/Drum( customized, MOQ=2000M) # Cable Jacket: Outer sheath Black
Company Contact:
- Posted By: Wuhan Horizon Technology Co., Ltd.
- Phone: 86-27-88712630
- Address: Add: No.1 Daxueyuan Rd., Optics Valley, Eastlake Hi-Tech District, Wuhan, China, Wuhan , Hubei , China
- Email:
Published date: March 27, 2018
- Business Description: We believe that customer's satisfaction has always been our guiding principle and our aim is to provide the best quality of products with fair prices.
Trust us, we can be your reliable partner and supplier in telecommunication field.
