Gyty53 Loose Tube Double Jacket Single Armored Cable - China

price: check with company for price

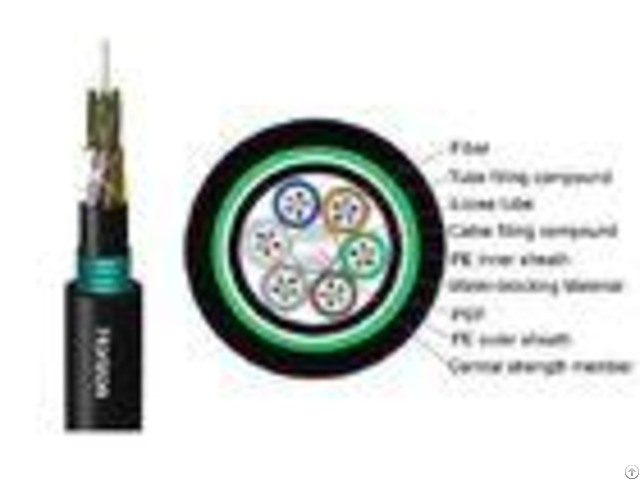

Gyty53 Loose Tube Double Jacket Single Armored Cable

Products Photos Catalog Gyty53 Loose Tube Photos Catalog

Description: Product Name: GYTY53 Loose Tube Double Jacket Single Armored Cable Model: GYTY53 Application: Outdoor direct buried, duct and aerial applications.

Long distance and local area network communication.

Features: Steel wire strength member, filler protect tube fiber, steel tape armored.

Good ultra violet radiation resistant property.

Double sheath.

Good mechanical performance and good moisture-resistance.

Technical Parameters: - - - - Fiber Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature | (MM) | (KG) | short term | long term | short term | long term | short term | long term | () | 24 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 36 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 42 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 48 | 13.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 60 | 13.0 | 185.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 72 | 13.0 | 215.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 96 | 14.5 | 215.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | 144 | 18.3 | 275.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | - - - - Order Information: # Cable type: SM or MM( Sinlge-mode: yellow; Multi-mode: orange;options available for other colours # Fiber Type: SM(G652D, G655C, G657A1, G657A2, G657B3) MM(OM1, OM2, OM3, OM4) # Fiber count: 24-144 # Cable length: 2000M/Drum( customized, MOQ=2000M) # Cable Jacket: Outer sheath Black


Company Contact:


  • Phone: 86-27-88712630

  • Address: Add: No.1 Daxueyuan Rd., Optics Valley, Eastlake Hi-Tech District, Wuhan, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 27, 2018

  • Business Description: We believe that customer's satisfaction has always been our guiding principle and our aim is to provide the best quality of products with fair prices.

    Trust us, we can be your reliable partner and supplier in telecommunication field.
