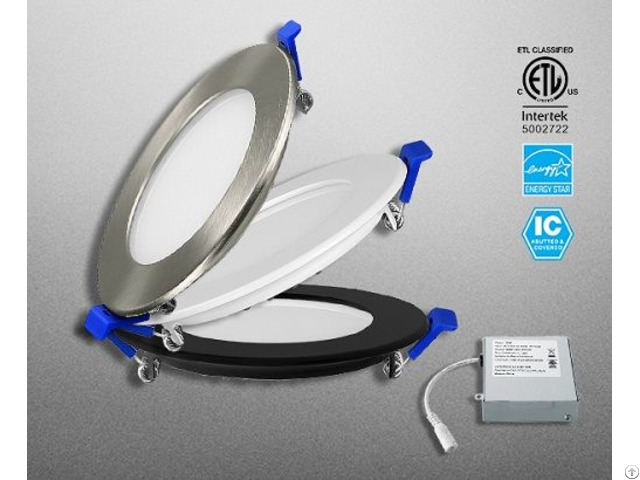

High Brightness Led Flat Downlight - China

High Brightness LED Flat Downlight with Junction Box 75lm/W, Ra>82, Dimmable, 5 years Warranty, CETL & ENERGY SATR

High Brightness Led Flat Downlight

Led Flat Panel Ceiling Lights

Key Features:

1'' Thin: Fits in Tight Ceiling Space.

Air Tight & Type IC Rated: No housing Required.

Fast & Easy Installation: Save labor cost.

Junction Box Included: No additional hardware required.

CRI 82: True color rendering is for option .

ETL-listed: reliable quality and safe operation.

Energy Star certification.

Suitable for damp locations.

Description:

The Goldsuno’s Deluxe TM 4” & 6” Anti-glare LED flat Downlights combine high quality light output and efficiency while eliminating the need for recessed housing for competitive affordability.

The innovative, slim design allows for easy retrofit, remodel for new construction installation from below the ceiling.

With its narrow design, it can be installed in application with only 2” plenum clearance.

The LED flat Downlight and remote driver with junction box are wet location approved, making them ideal for a breath of indoor residential, hospital, commercial and multifamily application.

Specification:

Model Number Power Lumen EFF Lumen *2 Beam Angle Dimming Rated*3 IP (5, 000K) Life (L70) JXL-CY04-T12W-UDH 12W 70lm/W 850lm 110° Triac 45, 000h IP40

JXL-CY06-T18W-UDH 18W 70lm/W 1200lm 110° Triac 45, 000h IP40

Order information: For shortest lead times, configure product using standard options.

JXL-CH04-T10W-UDH 30K 80 MW Example：

Series CCT *1 CRI Finish JXL-CH04-T10W-UDH-30K80MW

Economic TM 30K: 3000K 80CRI MW: Matte white 4” LED flat Downlights 40K: 4000K MB: Matte black 50K: 5000K BN: Brushed nickle 60K: 6000K *1 Color temperatures conform to nominal CCTs as defined in ANSI Chromaticity Standard C78.377A.

*2 Lumen measurement compies with IES LM-79-08 testing procedures.

*3 L70 = 70% lumen maintenance (when light output drops below 70% of initial output).

Ambient luminaire temperatures specified.

Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers.

Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.

Products Size: 4“ 6”

Aperture: 80mm 127mm Ceiling opening： 105mm 160mm Overlap trim: 43mm 43mm Height: 25mm 25mm Weight: Packing information:

Item Packing Carton size L*W*H(mm) N.W. (KGS) G.W. (KGS) Container Loading with Pallet Container Loading without Pallet Pallet size: 128X108X12cm 20GP 40GP 40HQ 20GP 40GP 40HQ pcs pallet pcs pallet pcs pallet 4" Downlight 20pcs/CTN 290*270*390 11 18, 960pcs 37, 240pcs 46, 880pcs 6" Downlight 20pcs/CTN 368*364*335 13 11, 660pcs 22, 500pcs 28, 320pcs Accessaries: Order as separate catalogue number

JXLWC6 6" FT4 Extension cable

JXLWC10 10" FT4 Extension cable

JXLWC20 12"FT4 Extension cable

JXLPS4 4" Construction Pan

JXLPS6 6"Construction Pan

JXLJS Hanger Bar Joist

Company Contact:

• Posted By: Shenzhen Goldsuno Opto-electronic Techonology Co. Ltd

• Phone: 86-755-33955246

• Address: 311th, Runtang Industry zone, Guanlan , Longhua District, Shenzhen , guangdong , China

• Email:

• Website: https://www.goldsuno.com

• Business Description: Shenzhen Goldsuno Opto-electronic Techonology Co.

  Ltd is a high–tech enterprise integrating R& D, production and selling of LED indoor lighting products, with more than 20 R&D engineers engaged in structure and driver design.

  Goldsuno Opto-electronic vertical integrate industry chain.

  We have subordinate department: shell production, heat-dissipation design and manufacture; LED driver R&D and application; high transmittance, anti-glare PC cover and reflector design and manufacture; SMD automatic produce and assembly; aging testing etc.

  Since 2009, we have obtained 12 patent technologies.

  LED down light series were UL, TUV/CE, SAA, RoHS approved.

  We endeavor in providing customers with stable, high quality and competitive products.
