Indoor Outdoor Armored Fiber Distribution Cable With Pvc Lszh Jacket - China
price: contact company for price

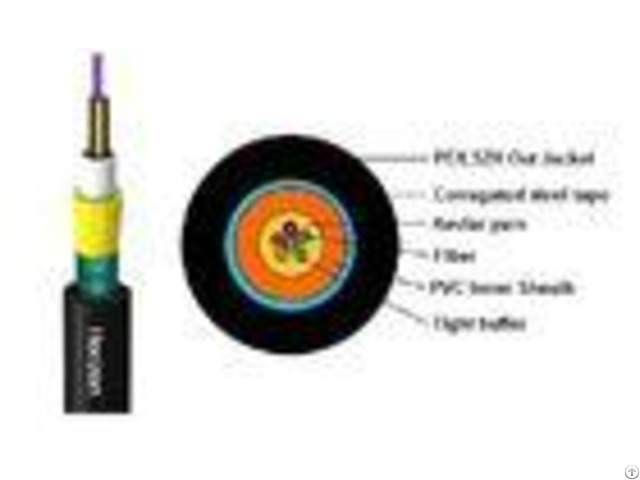

Description: Several 0.9mm tight buffer fibers, armored flexible metal tube, wrapped with a layer of aramid yarn, completed with colored outer PVC, LSZH jacket.
Features: 1 - Armored flexible metal tube, anti-rodent.
2 - High compression resistant, aramid yarn as strength member has excellent tensile resistant.
3 - Bend resistant and optimum flexible.
4 - Easy wiring, secured and reliable.
5 - Comply with standard YD/T, 1258.4-2005, IECA-596, GR-409, ICE 60794, etc.
Meet the requirement of ORNR.
Application: Indoor/outdoor cabling, make jumper, patch cord and pigtails.
Specification: - - - - Fiber count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile (N) Long/ Short term | Crush (N/100mm) Long/ Short term | Min.
Bend Radius (mm) Dynamic/ Static | 4 | 4.0 | 30 | 100/200 | 150/500 | 45/30 | 6 | 4.5 | 35 | 150/300 | 150/500 | 45/30 | 12 | 6.0 | 40 | 200/400 | 150/500 | 45/30 | Note: 1 - Range of temperature: -40~+80 | - - - - Optcial Characters: - - - - Glass Type | 62.5/125um | 62.5/125um | 50/125um | 50/125um | 50/125um | SM(G652) | Grade B | Grade A | Grade B | Grade A | OM3 | G.
652C/D | P/N Code(X) | 62B | 62A | 50B | 50A | OM3 | 09C/D | Operating | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 1310/1550nm | Wavelength | Bandwidth | 160/500 | 200/600 | 200/500 | 400/800 | 1500/500 | - | (MHz.
km) | Attenuation | 3.50/1.50 | 3.20/1.20 | 3.20/1.20 | 3.00/1.00 | 2.70/0.80 | 0.45/0.30 | (dB/km) | Link Length | 200/500 | 275/550 | 500/550 | 550/550 | 10004/600 | - | For 1000M | Link Length | - | - | - | - | 300/- | - | For 10G | - - - - Order Optional Information: l Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.
l Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.
l Fiber type: B1-G.
652, B1.3-G.
652 - D, B4-G655, A1-50/125m, A1b-62.5/125m, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.
657, E1.1- EasyBad Plus G.
657, etc.
l Cable Dimension: the nominal cable dimension, or other constomerized dimension; l Fiber Count: total number of fibers in the cable l MOQ: 1km~2km, or other customerized
Company Contact:
- Posted By: Wuhan Horizon Technology Co., Ltd.
- Phone: 86-27-88712630
- Address: Add: No.1 Daxueyuan Rd., Optics Valley, Eastlake Hi-Tech District, Wuhan, China, Wuhan , Hubei , China
- Email:
Published date: March 28, 2018
- Business Description: We believe that customer's satisfaction has always been our guiding principle and our aim is to provide the best quality of products with fair prices.
Trust us, we can be your reliable partner and supplier in telecommunication field.
