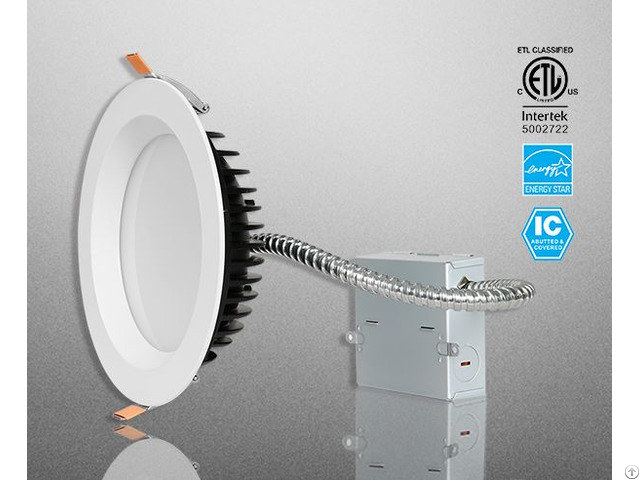

Industrial Led Anti Glare Downlight - China

Industrial LED Anti-glare Downlight with Junction Box 75lm/W, Ra>82, Dimmable, 5 years Warranty, CETL & ENERGY SATR

Individual Led Lights

Square Downlights

Key Features:

Type IC Rated: No housing Required.

Fast & Easy Installation: Save labor cost.

Junction Box Included: No additional hardware required.

CRI 90: True color rendering is for option .

ETL-listed: reliable quality and safe operation.

Energy Star certification.

Description:

Goldsuno's Industrial LED Anti-glare Downlight surpasses most other recessed lights on the market.

It has an aluminum heatsink for efficient heat dissipation, and a state of the art LED driver which gives it excellent dimming performance.

At 10%~100% dimmable, you have plenty of light when desired.

The architectural depth will reduce any glare emitted from the LED Chip.

Specification:

Model Number Power Lumen EFF Lumen *2 Beam Angle Dimming Rated*3 IP (5, 000K) Life (L70) JXL-TE04-T12W-UDH 12W 75lm/W 900lm 110° Triac 45, 000h IP40

JXL-TE06-T18W-UDH 18W 75lm/W 1350lm 110° Triac 45, 000h IP40

Order information: For shortest lead times, configure product using standard options.

JXL-CH04-T10W-UDH 30K 80 MW Example:

Series CCT *1 CRI Finish JXL-CH04-T10W-UDH-30K80MW

Economic TM 30K: 3000K 80CRI MW: Matte white 4” LED flat Downlights 40K: 4000K MB: Matte black 50K: 5000K BN: Brushed nickle 60K: 6000K *1 Color temperatures conform to nominal CCTs as defined in ANSI Chromaticity Standard C78.377A.

*2 Lumen measurement compies with IES LM-79-08 testing procedures.

*3 L70 = 70% lumen maintenance (when light output drops below 70% of initial output).

Ambient luminaire temperatures specified.

Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers.

Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.

Company Contact:

• Posted By: Shenzhen Goldsuno Opto-electronic Techonology Co. Ltd

• Phone: 86-755-33955246

• Address: 311th, Runtang Industry zone, Guanlan , Longhua District, Shenzhen , guangdong , China

• Email:

• Website: https://www.goldsuno.com

• Business Description: Shenzhen Goldsuno Opto-electronic Techonology Co.

  Ltd is a high–tech enterprise integrating R& D, production and selling of LED indoor lighting products, with more than 20 R&D engineers engaged in structure and driver design.

  Goldsuno Opto-electronic vertical integrate industry chain.

  We have subordinate department: shell production, heat-dissipation design and manufacture; LED driver R&D and application; high transmittance, anti-glare PC cover and reflector design and manufacture; SMD automatic produce and assembly; aging testing etc.

  Since 2009, we have obtained 12 patent technologies.

  LED down light series were UL, TUV/CE, SAA, RoHS approved.

  We endeavor in providing customers with stable, high quality and competitive products.
