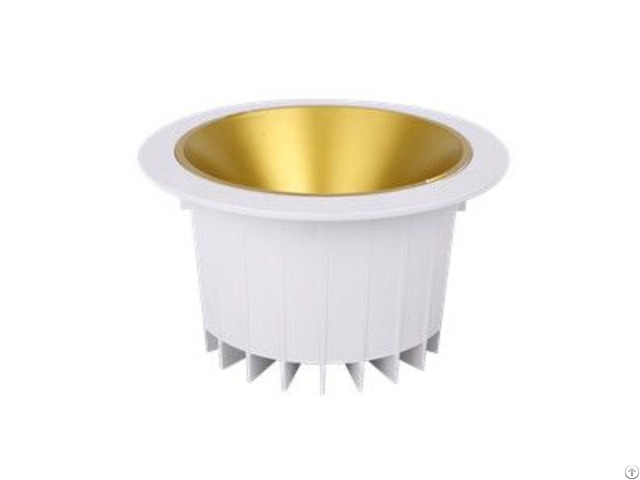

Led Downlight Dtc Series - China

LED Downlight DTC Series Shopping malls LED Downlight supplier custom LED Downlight manufacturer

Model: JST-DTC

Wattage: 10W-40W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: ＞90

Finish Color: White/Black/Customized


Ring Color: White/Black/Gold/Silver

Beam Angle: 30°/45°

Diameter: 100mm-230mm

Cutout: 90mm-200mm

Black LED Downlight Description

DTC series downlights uses high-quality Nippon CITIZEN LED with high display finger, high light efficiency and low color tolerance; the lamp body uses high-purity integrated die-casting aluminum, high-grade beautiful and fast heat dissipation; 1090 aluminum reflector, bright silver, sand, black, rose gold and other colors are optional; anti-glare design, soft and non-dazzling; the whole lamp adopts waterproof design, protection grade IP65; it is a high-end commercial lighting.

Tube lamp can be widely used in hotels, hospitals, subway, railway stations and other indoor and outdoor places.

high efficiency LED Downlight Advantages

1 - Die-cast aluminium heatsink to meet economic price

2 - Non-flicking make good light environment.

3 - Glare-fee design, perfect light spot with precise cast.

4 - Easy to installation.

5 - IP65

6 - Life span for 50, 000hrs

Specification

Model Power CRI CCT PF Current Input Voltage Beam Angle Dimension Cutout

JST-DTC 10W >80/90 2700K-5000K >0.65 0.25A AC220-240V 30°/45° D100*H75mm 90mm

JST-DTC 20W >80/90 2700K-5000K >0.90 0.35A AC220-240V 30°/45° D150*H90mm 130mm

JST-DTC 30W >80/90 2700K-5000K >0.90 0.75A AC220-240V 30°/45° D185*H112mm 170mm

JST-DTC 40W >80/90 2700K-5000K >0.90 1.00A AC220-240V 30°/45° D230*H128mm 200mm Application

Jewelry stores, museums, mood lighting, banks, airport suppermaket and etc.

Our products such as customized LED downlight, LED track light and LED grille downlight have various certificates, such as CE, ROHS, SAA, CB, TUV ect.
