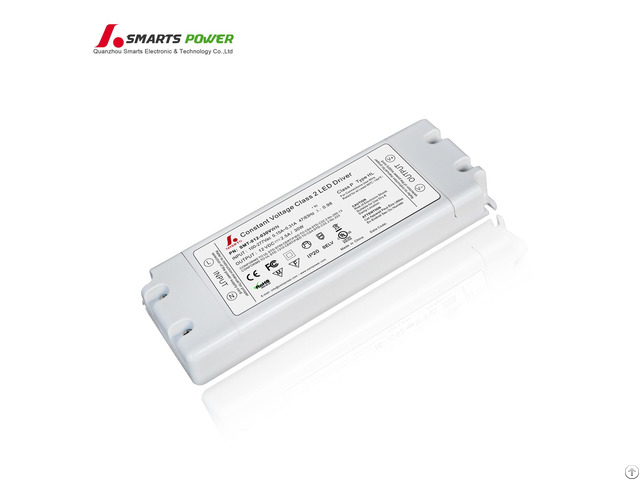

Led Driver 12 Volt 25 Watt 30 Watts For Light Fixture - China
price: 15.00 Dollar US$
Descriptions: Model: SMT-012-030VWN
Input volt: 100-277vAC
Output: 12vdc 2.5A 30w
Efficiency>98% Warranty: 7 years Size: 178*61*24mm
Net weight: 0.375kg/pc
Waterproof rate: IP20
CE, UL, RoHS, FCC, class p, class 2 Features: High efficiency, save energy, protected environment.
High stability and low ripple, increase light efficiency and decrease light attenuation.
Meet to safety standard and EMC Assure LED stability long lift and light efficiency by constant voltage.
Integrity protection, over loading, over voltage, over current.
8Hrs and 100% full load burn-in test.
Environment : 1 - Working Temperature : -25 ~ +50°C 2 - Working Humidity : 20 ~ 90% RH non-condensing 3 - Storage Temp., Humidity : -40 ~ +80°C, 10 ~ 95% RH 4 - TEMP.
Coefficient : ±0.03%/°C (0 ~ 50°C) 5 - Vibration : 10 ~ 500Hz, 2G 10min.
/1cycle, period for 60min.
each along X, Y, Z axes Safety : 1 - Safety Standards : IEC 61347 –2–11, IEC 61347 –1, IEC 60529, IP67 approved 2 - Withstand Voltage : I/P-O/P: 3000KVAC 3 - Isolation Resistance : I/P-O/P: 100M Ohms/500VDC
Company Contact:
- Phone: 22863721
- Address: 7th Floor NO. 3 building NO. 928 NanHuan Road ChangTai Str. WuXing Area Licheng Dist., 362000,, QUANZHOU , FUJIAN , China
- Email:
- Website: https://www.smarts-electronics.com/
Published date: August 30, 2019
- Business Description: Our company is UL audited led driver/power supply manufacturer in China.
We specialize in waterproof & plastic cover constant current / voltage led drivers, triac/0-10v/DALI dimmable led drivers, enclosure power supplies, switching power adapters.
Most of our products got CE, UL, ROHS approval.
We do business since 1998 and 75% of our products were sold to your market.
