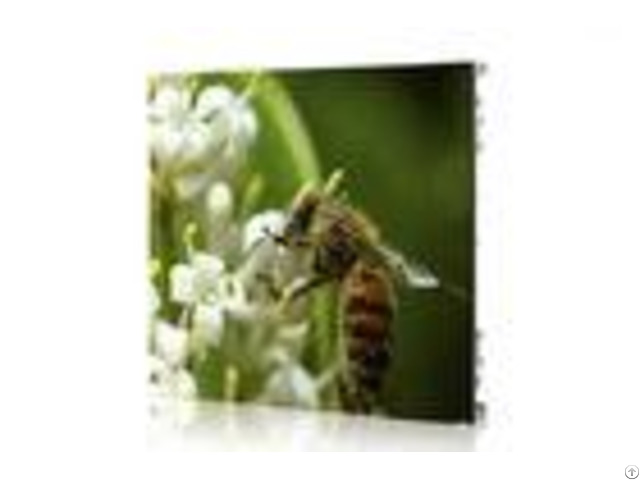

Low Power Consumption Thin Pixel P2 9 Ture Color Hd Led Display For Events - China

Low Power Consumption Thin Pixel P2.9 Ture Color HD LED Display For Events Product Description: 1 - Lightweight.

Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2 - Nice appearance and simple structures.

3 - Jointed correctly, being installed & dismounted by one person without tool.

4 - Humanized operating interface with breakdown indicator lights, easy to maintain.

5 - High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Delicate Appearance: 1)Fast and flexible installation 2) High-end display technology, the screen is more uniform and good 3) The use of the latest anti-collision plate technology guarantees good security 4) Gap adjustable, seamless stitching 5)No noise, low power consumption 6) Excellent thermal performance Excellent Design Multi-function fixed, intelligent positioning, gap adjustable The entire screen seamlessly, can be quickly installed and removed Splicing gap flatness <0.1mm Right Picture: 1 - Adjustable Hanging Bracket.

2 - Connection detail between hanging bracket and cabinets.

3 - Connectiong detail between cabinets (Upper & Lower).

4 - Mounting Bracket.

Technicail Specification: - - - - Items | Parameter | Pixel Pitch | PH2.9mm | PH3.9mm | PH4.8mm | PH5.2mm | Module Resolution(W*H) | 172(W)*172(H) | 128(W)*128(H) | 104((W)*104(H) | 96(W)*96(H) | Pixel Configuration | 1R1G1B(in 3 n 1) | LED Encapsulation | Black SMD 1514 | Black SMD 2121 | Black SMD 2121 | Black SMD 2121 | Pixel Density | 118336 Pixel /m2 | 65536 Pixel /m2 | 43264 Pixel /m2 | 36864/ Pixel m2 | Driving Method | 1/15Scan | 1/16Scan | 1/13Scan | 1/8Scan | Refresh Frequency | 2880Hz | 2880Hz | 2880Hz | 2880Hz | Driver IC | Special constant current IC with high refresh rate & high grey scale | Grey Scale | 14Bit(depending on the system and Configuration | Cabinet Size | 500*500mm | White balance Brightness | 800cd/ m2 | 800cd/ m2 | 800cd/ m2 | 800cd/ m2 | Color Temperature | 8000K500(adjustable) | Viewing Angle | Horizontal 140 Vertical 120 | Optimal Viewing Distance | >2m | >3m | >4m | >5m | Working Voltage | AC 220V/110V 10% | Module voltage | DC4.2V | Max Power Consumption /per module | 100W/PCS | 100W/PCS | 120W/PCS | 150W/PCS | Avg.

Power Consumption /per module | 50W/PCS | 50W/PCS | 60W/PCS | 80W/PCS | Lifetime | 50000hours | Operating Temperature | 10~65 | 10~65 | 10~65 | 10~65 | Net weight | 7.8Kg/pcs | 7.8Kg/pcs | 7.8Kg/pcs | 7.8Kg/pcs | - - - -

Company Contact:

• Posted By: Shenzhen Lightin Technology Co ,.Ltd

• Phone: 86-755-29376353

• Address: D2, Futai Industrial Park, Shiyan Town, Bao'an District, Shenzhen City, Guangdong Province, China, Shenzhen , guangdong , China

• Email:

• Business Description: Shenzhen Lightin Technology Co , .

  Ltd.(abbr: Lightin technology), was Founded in 2011, is a professional engaged in indoor and outdoor full-color LED display related products research, development, production, sales, and to provide comprehensive technical service of high-tech enterprises.
