Microwave Motion Sensor Antenna Module - China
price: contact company for price

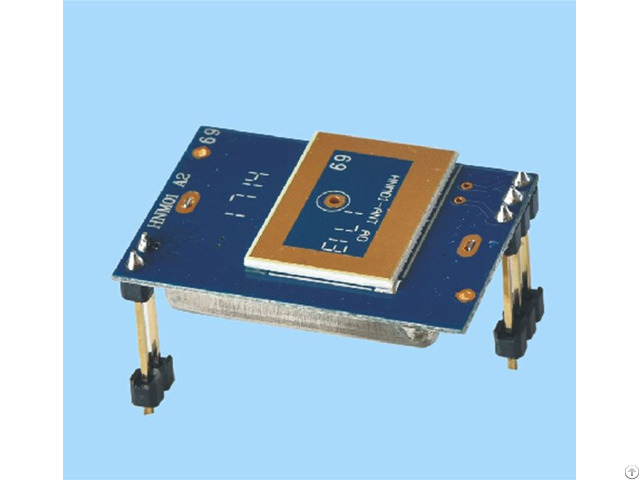

Microwave Motion Sensor Antenna Module
Microwave Sensor
Microwave Motion Sensor
HNM01
Low cost.
Beam aperture: 30°.
Features
Low cost.
5.8GHz C-band miniature transceiver.
Patch antenna, antenna gain: 2 dBi.
Beam aperture: 30
2 balanced mixer.
5dBm EIRP output power.
Receiver bandwidth: 1Hz ~ 2KHz.
Operating current(CW mode): 13.5mA@5V.
Low power consumption(Pulse mode): Average current: 1.5mA typ.
Pulse width(min.
): 10~50 s(10kHz~2kHz) Duty cycle: 10% DC
RoHS compliant
Tested to EN300 440
Company Contact:
- Posted By: Hynall Intelligent Control Co. Ltd
- Phone: 86-0755-27206061
- Address: Floor 14th, Hui-Jing-Yuan Science & Technology Innovation Park, #531 Nan'pu Road, Shajing, Bao'a, Shenzhen , guangdong , China
- Email:
- Website: https://www.hynall.com
Published date: May 7, 2018
- Business Description: Hynall Intelligent Control Co.
Ltd
With 15 years+ experiences in industry, we focus ONLY on microwave motion sensing technology, to serve customers with ultimate solutions that match best and save most!
Why Hynall？What makes us stand out from others？
Focus only on microwave products / solutions, do what we are really good at.
Comprehensive range of series including antenna modules, DC input, AC input, VR adjustable version, remote control version and detached version.
Professional + well experienced R&D + Sales team, understand deeply of different lighting fixture types and various sensor applications, enable us to offer customers with best product selection, trouble shooting and after sales service.
Much flexible to tailor made products.
