Multi Core Double Sheath Spiral Steel Fiber Optic Cable Gjfjv - China

Description: Multi core Double Sheath Spiral steel Fiber optic cable GJFJV characteristics: 1 - Good mechanical and environmental characteristics; 2 Flame retardant characteristics meets the requirements of relevant standards; 3 The mechanical characteristics meet the requirements of relevant standards; 4 Soft, flexible, easy to splice, and with big capacity data transmission; 5 Meet various requirements of market and clients.

Application: 1 - Used in Indoor and Outdoor distribution; 2 Used in pigtails and patch cords; 3 Used in optical connections in optical communication equipment rooms and optical distribution frames; 4 Used in optical connections in optical apparatus and equipments.

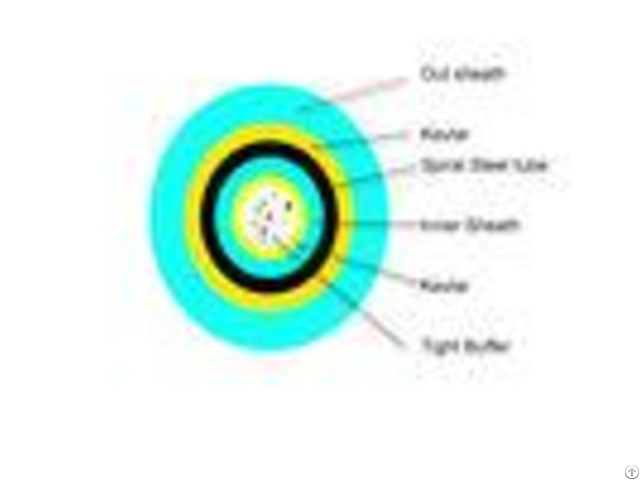

Cable construction details : - - - - Technical Parameters: | Out Diameter(MM) | 2.0 | Weight(KG) | 15.0 | 2.8 | 18.0 | 3.0 | 18.0 | Storage temperature() | -20+60 | Min Bending Radius(mm) | Long term | 10D | Min Bending Radius(mm) | Short term | 20D | Min allowable Tensile Strength(N) | Long term | 300 | Min allowable Tensile Strength(N) | Short term | 1000 | Crush Load (N/100mm) | Long term | 500 | Crush Load (N/100mm) | short term | 1000 | - - - - Fiber characteristic - - - - Fiber style | Unit | SM G652 | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 | condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | attenuation | dB/km | | | | 3.0/1.0 | 3.0/1.0 | 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | | | Dispresion | 1550nm | Ps/(nm*km) | | 18 | | | Dispresion | 1625nm | Ps/(nm*km) | | 22 | | | | Bandwith | 850nm | MHZ.

KM | | | 400 | 160 | Bandwith | 1300nm | MHZ.

KM | | | 800 | 500 | | Zero dispersion wavelength | nm | 1300-1324 | 1302, 1322 | | | 1295, 1320 | Zero dispresion slope | nm | 0.092 | 0.091 | | | | PMD Maximum Individual Fibr | | 0.2 | 0.2 | | | 0.11 | PMD Design Link Value | Ps(nm2*k m) | 0.12 | 0.08 | | | | Fibre cutoff wavelength c | nm | 1180, 1330 | 1180, 1330 | | | | Cable sutoff wavelength cc | nm | 1260 | 1260 | | | | MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | | | | 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | | | | Numerical Aperture(NA) | | | | 0.200+/ -0.015 | 0.275+/-0 - 015 | 0.200+/-0 .

015 | Step(mean of bidirectional measurement) | dB | 0.05 | 0.05 | 0.10 | 0.10 | 0.10 | Irregularities over fiber length and point | dB | 0.05 | 0.05 | 0.10 | 0.10 | 0.10 | - - - - - - - - Dicontinuity | Difference backscatter coefficient | dB/km | 0.05 | 0.03 | 0.08 | 0.10 | 0.08 | Attenuation uniformity | dB/km | 0.01 | 0.01 | | | | Core dimater | um | | | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | Cladding non-circularity | % | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | Coating/chaffinch concentrically error | um | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | Coating non circularity | % | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | Core/cladding conentricity error | um | 0.6 | 0.6 | 1.5 | 1.5 | 1.5 | Curl(radius) | um | 4 | 4 | | | | - - - -
