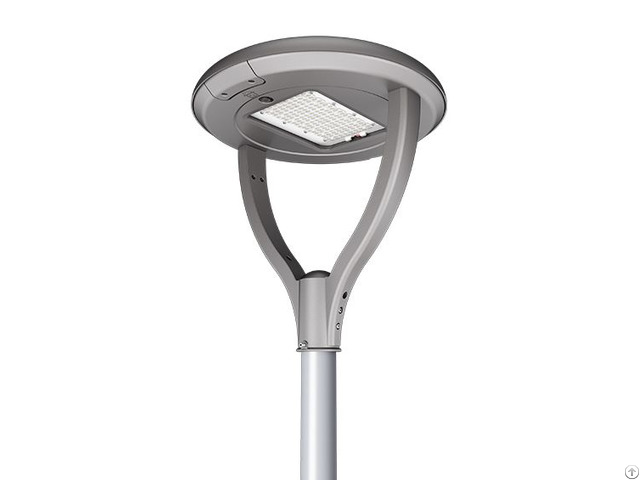

Multi-purpose smooth body 90w tool-less external led lighting

led external lighting series l led street light

model：

zgsm-ld90lmx

application：

street | road | highway | parking lot | bridge | path

1 - wide power range: 27w~120w

2 - special circuit design, single led’s damage won't affect others' normal work

3 - tool-less open for easy installation, replacement and maintenance.

4 - power-off protection makes the power automatically off when fixture is opened

5 - smooth body would greatly diminish dust accumulation and bird droppings heap up.

6 - breather ensures air balance inside and outside of the lamp

7 - high lumen output up to 150lm/w with high quality led chips

8 - post top mounted, pendant mounted, side entry mounted, suspended mounted for optional.

9 - multiple lighting control options are available, e.g. dali, 1-10v, photocell

10 - designed to last at least 100, 000 hours at l70

11 - multiple lighting distributions are available

12 - enec/ cb/ ce/ rohs/ ik08 /ip66 /lm79

13 - 7 years limited warranty available.

specifications

specifications

model zgsm-ld90lmx( x= a, b, c, d)

led brand lumileds® luxeon 3030 or 5050

driver brand meanwell hlg series/ inventronics

norminal wattage 90w

led chip quantity 3030: 168pcs 5050: 84pcs

input voltage 100-240/277vac

power efficiency >90%

power factor >0.95

lamp rated luminous efficiency 130-150 lm /w

lamp rated lumen output 11700-13500 lm (lumen tolerance +/- 5%)

color rendering index 70(80 optional)

color temperature 3000k or 4000k or 5000k or 5700k

photometric type type i medium;type ii medium;type iii medium; typev, short

optimal operating temperature 25℃

storage temperatures -40°c~50°c

working environment between-40°c~+50°c, 10%~90%rh

total harmonic distortion < 10%

lumen maintenance > 100, 000 hours -l70, @25 ºc (77 ºf)

wind index force 12

body and shell materials die-cast aluminum; tempered glass

pole fitter diameter 60mm

rating ip66 ik08

protection class i ( class ii optional)

spd 10kv (20kv optional)

certification ce, enec, cb rohs, lm80, lm79, ip66 ik08, istmt

dimming options 1-10v or dali or pwm or timer

control options photocell or motion sensor or smart control

color options deep grey

warranty 7 years
