Non Armored Distribution Fiber Optic Cable Anti Corrosion With Pvc Lszh Jacket - China

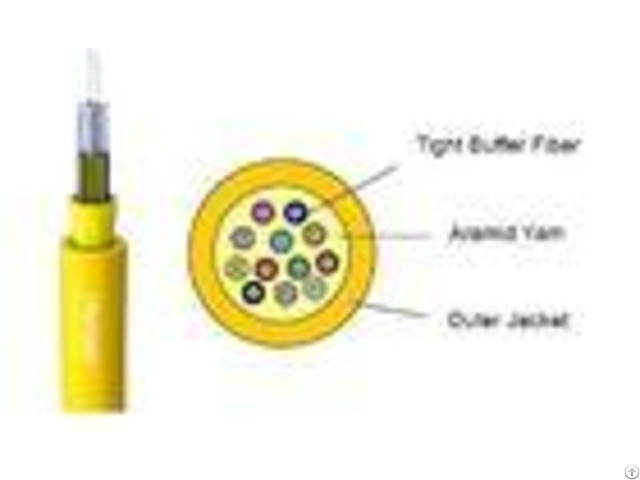

Description: Mulit-purpose distribution fiber optic cables use several diameter 900m flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of agamid yarn as strength member units, and the cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant ) jacket.

Features: 1 - Tight buffer fiber ease of stripping 2 - The jacket anti-corrosion, anti-water, anti-alltraviolet retardations, flame retardant and harmless to environment etc; 3 - Excellent flame retardants jacket and anti-torsion 4 - Soft, flexible, easy to splice, and with big capacity data transmission; 5 - Excellent performance of anti-torsion 6 - All dielectric structure protect it from electromagnetic influence 7 - Scientific design with serious processing art.

Application: 1 - Multi optical fiber jumper; 2 - Indoor any purpose cable distribution; 3 - Backbone distribution cable in building.

Optical Characteristics: - - - - Glass Type | 62.5/125um | 62.5/125um | 50/125um | 50/125um | 50/125um | SM(G652) | Grade B | Grade A | Grade B | Grade A | OM3 | G.

652C/D | P/N Code(X) | 62B | 62A | 50B | 50A | OM3 | 09C/D | Operating | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 1310/1550nm | Wavelength | Bandwidth | 160/500 | 200/600 | 200/500 | 400/800 | 1500/500 | - | (MHz.

km) | Attenuation | 3.50/1.50 | 3.20/1.20 | 3.20/1.20 | 3.00/1.00 | 2.70/0.80 | 0.45/0.30 | (dB/km) | Link Length | 200/500 | 275/550 | 500/550 | 550/550 | 10004/600 | - | For 1000M | Link Length | - | - | - | - | 300/- | - | For 10G | - - - - Order Information: Cable Code: HTMPC-X1-X2X3-X4X5 X1: Cable subunit diameter X2: Jacket material: V- PVC jacket, Z- LSZH jacket X3: Jacket color: B- blue, O- Orange, G- Green, N- Brown, S- Slate, R- Red, K- black, Y- Yellow, V- Violet, P- Pink, A- Aqua.

X4: Fiber type: B1-G.

652, B1.3-G.

652 - D, B4-G655, A1-50/125m, A1b-62.5/125m, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.

657, E1.1- EasyBad Plus G.

657, etc.

X5: fiber counts Note: the color of tight buffer fibers is arranged from the sequence: B- blue, O- Orange, G- Green, N- Brown, S- Slate, R- Red, K- black, Y- Yellow, V- Violet, P- Pink, A- Aqua.
