P10 Stadium Perimeter Led Display Smd 3535 Waterproof Ip65 Iso 9001 Approved - China

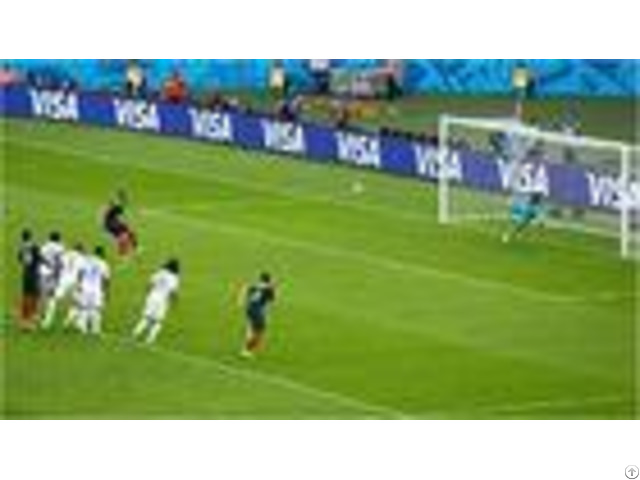

Outdoor P10 Perimeter LED Display For Football Field Advertising Product Features and advantages: 1, According with International sport competition standard, meet UEFA stadium standard requirement, TUV-EMC certificated, used in different sport events.

2, The cabinets with special simple designs plus quick connection button between cabinets, making them convenient to install and disassemble 3, Adjustable angle, flexible angle ensure a best viewing angle, independent groud support, high stability.

4, High resolution, perfect performance, showing wonderful scene, good for advertising.

5, High protection, Waterproof IP65, adapt to different weathers.

Paramters - - - - Module | Pitch/mm | P10 | Module size/mm | 320*160 | Density of pixel/(dots/m2) | 10000dots | Pixel composition | 1R1G1B | Led encapsulation | SMD3535 | Resolution of module | 32*16 | Screen | Optimum viewing distance | 10-150m | View angle / | 120H, 120V | Max power consumption | 1000W/sqm | Size of cabinet/mm | 960X960 | Resolution of cabinet | 96*96 | Driving method | 1/4 scan | Refresh rate Hz/S | 960 | Luminance of white balance | 7000cd/sqm | Operation of Environmental Temperature/ | below 30 to above 50 | Protective grade | IP65 | Working voltage | 110-220 VAC/+/- 10% | Grey scale/color | 14bits | Brightness adjustment | 4096 levels of each color(manually), | 100 levels of each color(automatically) | Input signal | RF, S-Video, RGB, RGBH, YUV, YC&Composition, etc | Control system | Linsn / Nova(sending card, receiving cards and Hubs) | Average of non-failure life | >10, 000h | Life span | >100, 000h | Functionless dot rate | <0.0001 | - - - - After-Sales Service 1) Training after order After the order is placed, a processional training will be offered, including software use, operate safety, maintain equioment.

2) Installation and debugging We could send professionals to conduct on site installation and debugging in strict.

3) Warranty Warranty: 2 years warranty, lifetime maintenance equip with free spare parts.

The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself.

While you should take the cost of the freight to us.

After 2 years, service is still available, but would charge for labor, material and freight cost that generates.

4) Maintenance Maintenance principles: response in time, solve problems asap and ensure the use.

Maintenance period: In the maintenance period of the led display body, free of all maintenance charges.

After maintenance period, only charge the material cost and labor cost.

5) service Your inquiry ralated to our products or price will be replies in 24hours.

OEM&ODM.

any your customized lighting we can help you to design and put into product.

Distributorship are offered for your unique design and some our current models.

Protection of your sales area, ideas of design and all your private information.
