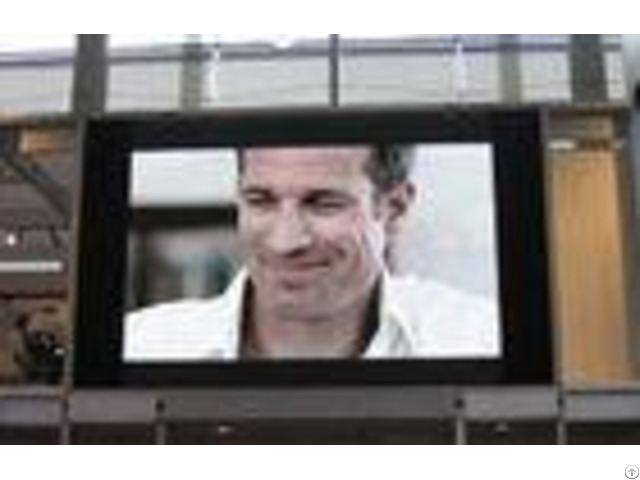

P8 Smd Outdoor Full Color Led Display Screen High Brightness Good Flatness - China

Waterproof advertising P8 outdoor full color led panel ProductDescription 1) With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.

2) RGB deep gray processing to show any color.

3) Support point correction function, ensure the consistency of the color and the brightness in the process of use.

4) Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.

5) Accurate, shortcut, flexile installation, can be applied to any different installation environment.

6) With the protection rating of IP65, face any bad weather.

7) Complete series, customized to satiny any requirements of customers.

8) With the professional aviation plug as the connectors ensure the quality and safety.

9) With the high quality raw material, mature process and scale production, the quality is ensured.

Specification - - - - Outdoor Full Color P8 LED Display | Main | Model | P8-4S | Module | Pixel pitch(mm) | 8 | LED Lamp Model | SMD3535 | Module Size(W*H) | 256*128mm | Module Size(W*H) | 12.6*6.3inch | Module Resolution(W*H) | 32*16 | Driving Mode | Constant drive | Scan Mode | 1/4 | Pixel configuration (R, G, B) | SMD3in1 | Color temperature (K) : | 3200-9300 | Grey scale/colors | 256levels of each color(RGB)/28.1M colors | Cabinet | Standard Cabinet Size(mm) | 1024*1024 | (W*H) | Cabinet Resolution(W*H) | 256*256 | Cabinet Module Number | 8PCS | IP Grade | IP65 | Cabinet Weigh(kg) | 45 | Cabinet Material | Iron | Display | Best Viewing Distance(m) | 8-50 | Pixel Density (dot/m2) | 15625 | Brightness(cd/m2) | 7000 | Power Max Consumption (W/m2) | 800 | Power Average Consumption (W/m2) | 400 | View angle | H: 160; V: 120 | system Specification | Control host (CPU) : | Pentium4 or above | Operating system: | WIN98/2000/NT/XP | Control method | Synchronous display with control PC by DVI | Control System | Linsn, Nova-star, Colorlight or as you required | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

| Interface definition | HUB75 | Frame Frequency | 60Hz | Refresh frequency | 4000HZ | Transmission Distance | Multi mode fiber | Operation Parameter | Working Voltage | AC22010% 50Hz/AC11010% 60Hz | storage Temperature | 35~+85 | Working Temperature | 20~+50 | Humidity | 10%-90% | Life Span Time | 100000 hours | MTBF | 5, 000hours | Screen Plainness | | Blind Spot Rate | | | Certificate | CE, RoHS, FCC | - - - - FAQ 1: What is the pixel pitch for outdoor led display? A: Outdoor: 4MM/5mm/6mm/8mm /9.525mm/10mm/16mm 2: What is the warranty of your led display? A: We offer 2years warranty.

and more than 100000 hours screen life span 3: Can it play HD video? A: Yes, it have HD video function with Novastar controlling system.

4: what is your payment term?How long it takes to delivery? A: We usually accapt the T/T or L/C.

both of them will at least 30% deposit in advance, and the rest of 70% will paid before delivery.

The lead time is usually 20 days 5: How can you ensure the led display product quality? A: Before shippment, all the screens have aging test.

and then we also have waterproof test and shake test, ensure products can transportation safety and normal use.

6: What is your pre-sale and post-sale service? A: For pre-sale service, we have professional sales team and technical team, who are willing to answer your question within 24 hours.

For post-sale service, we will instruct you how toinstallation, how to use, how to change the broken moudles, and we can also send the technicals to your country, in general, our led display will not have a big problem, you can rest assured to buy.

7: How to choose suitable led display? A: Please offer size about width and height, for outdoor fix led display, it would be more better to offer installation height and viewing distance, we will recommend suitable led display for your project.

We will more appreciate you can offer photos of screen location.
