Professional Duplex Fiber Optic Cable Flame Retardant For Indoor Cabling - China

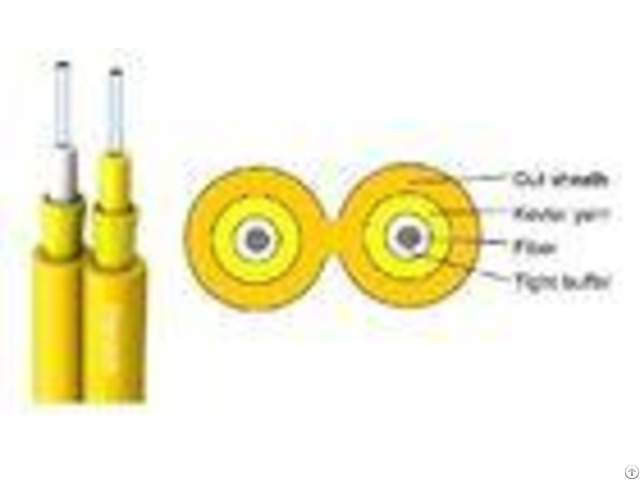

Description: Indoor Duplex fibre optical cable Features: 1 - Good mechanical and environmental characteristics; 2 - Flame retardant characteristics meet the requirements of relevant standards; 3 - The mechanical characteristics meet the requirements of relevant standards; 4 - Soft, flexible, easy to splice, and with big capacity data transmission; 5 - Meet various requirements of market and clients Application: 1 - Used in pigtails and patch cords; 2 - Used in optical connections in optical communication equipment rooms and optical distribution frames, and optical apparatus connectors; 3 - Used in indoor cabling.

Mechanical & Environmental characteristics: - - - - Cable Code | Fiber Count | Outside | T.

B | Cable | Tensile Load | Crush Load | Bend Radius | Diameter | Diameter | Weight | (mm) | (mm) | (kg/km) | S(N) | L(N) | S(N) | L(N) | S(mm) | HTZDX1-X2X3-X4X5 | 2 | 1.6*2 | 0.6 | 6.5 | 300 | 160 | 500 | 100 | 20D | HTZDX1-X2X3-X4X5 | 2 | 1.8*2 | 0.6 | 7 | 300 | 160 | 500 | 100 | 20D | HTZDX1-X2X3-X4X5 | 2 | 2.0*2 | 0.9 | 8 | 300 | 160 | 500 | 100 | 20D | HTZDX1-X2X3-X4X5 | 2 | 2.4*2 | 0.9 | 9.4 | 300 | 160 | 500 | 100 | 20D | HTZDX1-X2X3-X4X5 | 2 | 2.8*2 | 0.9 | 12.5 | 300 | 160 | 500 | 100 | 20D | HTZDX1-X2X3-X4X5 | 2 | 3.0*2 | 0.9 | 14 | 300 | 160 | 500 | 100 | 20D | - - - - Transport/ Storage/ Operating Temperaturee: -20c ~+ 60 c, Installation Temperature: -5c ~ +60 c Optical Characteristics - - - - Glass Type | 62.5/125um | 62.5/125um | 50/125um | 50/125um | 50/125um | SM(G652) | Grade B | Grade A | Grade B | Grade A | OM3 | G.

652C/D | P/N Code(X) | 62B | 62A | 50B | 50A | OM3 | 09C/D | Operating | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 850/1300nm | 1310/1550nm | Wavelength | Bandwidth | 160/500 | 200/600 | 200/500 | 400/800 | 1500/500 | - | (MHz.

km) | Attenuation | 3.50/1.50 | 3.20/1.20 | 3.20/1.20 | 3.00/1.00 | 2.70/0.80 | 0.45/0.30 | (dB/km) | Link Length | 200/500 | 275/550 | 500/550 | 550/550 | 10004/600 | - | For 1000M | Link Length | - | - | - | - | 300/- | - | For 10G | - - - - Order Information: HTZDX1-X2X3-X4 X1: Cable subunit diameter X2: Jacket material: V- PVC jacket, Z- LSZH jacket X3: Jacket color: B- blue, O- Orange, G- Green, N- Brown, S- Slate, R- Red, K- black, Y- Yellow, V- Violet, P- Pink, A- Aqua.

X4: Fiber type: B1-G.

652, B1.3-G.

652 - D, B4-G655, A1-50/125m, A1b-62.5/125m, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.

657, E1.1- EasyBad Plus G.

657, etc.
