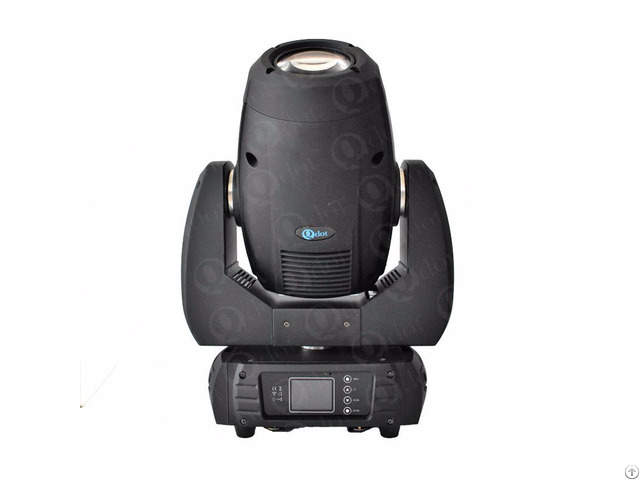

Qdot Q 804 Ledspot 250z 250w Led Moving Head Spot With Zoom Light - China

The LEDSPOT 250Z features a 7500K 250W single white LED, with a 11°to 23°linear motorized zoom, brings ultra high brightness, pure and clean colors and gobos, low power consumption and wider application capability for pro lighting designers.

It could be considered to replace LEDSPOT 300Z, for more economical but still having great output.

With outstanding lighting intensity, compact size, precise PAN/TILT fast and quiet movement, it offers a full complement of professional characteristics, very suitable for large scale live concerts, clubs, exhibitions, wedding events, studios, etc.

General Details Model No: Q-804

Model Name: LEDSPOT 250Z (LED SPOT ZOOM)

A 250W single white LED, 7500K

50, 000 hours lifespan and lower power consumption Input Power: AC90~260V 50/60Hz

Power Consumption: 290W

Linear motorized zoom with 11°to 23°beam angle

Specific high precision glass optic system and flat beam field

1 rotating gobo wheel with 6 (3 glass gobos and 3 metal gobos) rotating and interchangeable glass gobos plus open with adjustable speed, stream effect, dithering effect and rotating clockwise or anticlockwise Gobo indexing

1 static gobo wheel with 8 gobos plus open

Gobo overlay (gobo morphing) 1 color wheel with 7 colors plus open (half color mode available)

Gobo time and color time controllable 3-facet prism with variable speed and direction Frost filter (Hybrid effect for wash)

Optional Model Versions: white color case, black color case, wireless system built-in Features

8/16 bit smooth and precise resolution for PAN/TILT movement

PAN degree optional: 630/540/360, TILT degree optional: 270/180/90

Scan position memory, auto re-position after unexpected movement

Gobo size 22.9mm (external dimensions)/16mm (inner dimensions)

Various direction rainbow effect with adjustable speed

2 meter to 15m electric focus, motorized linear IRIS

0-100% linear LED dimmer, 2 dimmer modes

25T/sec high speed LED shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect Control Channel: 14/16/16/18 DMX channels USITT DMX-512

Sound control with sensitivity adjustment Control Mode: DMX 512, master-alone, sound activated controllable or auto operation (8 built-in programs)

2.4" TFT (320*240 pix) LCD display, with 4 control buttons, 180°reversible, auto switch off after 60 seconds.

DMX recorder and edit function integrated

DMX signal monitoring indicator available Powercon IN/OUT

3-pin XLR connectors IN/OUT

Fan cooling system, constant temperature readout and management function Low noise and efficient fan cooling system, self-adjusting fan cooling system Constant temperature readout and management function -20℃ to +45°C ambient temperature

IP20 protection rating

2*1/4 turn fastening OMEGA clamps, adaptable vertically and horizontally

1*safety attachment point Specifications Dimensions: 209(D)*367(W)*505(H)mm


Packing Dimensions: 400(D)*445(W)*515(H)mm


Net Weight: 14kg

Gross Weight: 17kg
