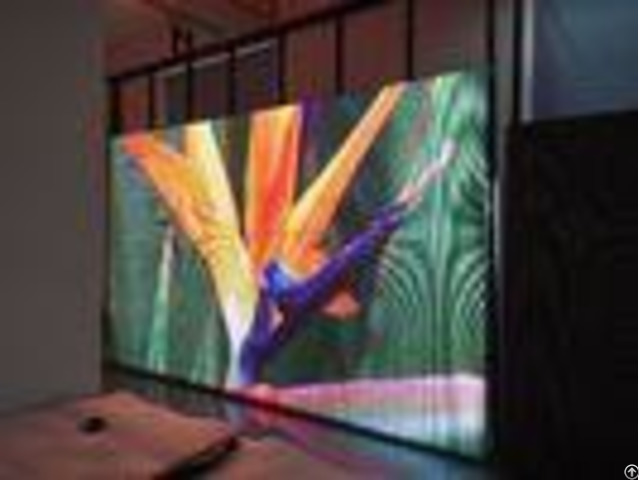

Reasonable Price P3 Stage Led Screens With 576 576mm Die Casting Aluminum - China

Reasonable Price P3 Stage LED Screens With 576*576mm Die-casting Aluminum Product Description Light Weight: Each cabinet 576*576mm, only 8.5Kgs.

and so on.

Thin Cabinet: Die-casting aluminum cabinet, only 5.5/6cm at the edge.

Easy&Fast Installation: Fast locking device in four sides.

It takes only dozens of seconds to assemble one cabinet by pushing the handle 90 degree.

It is fast and precise assembling.

High Quality: Use the high quality SMD, High resolution.

Long lifespan, can reach more than 100, 000 hours, while the power consumption is lower than one tenth of lamp or neon; Rich indoor full color LED display board engineering experience both in domestic and international market.

Product Advantage 1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal.

2) High contrast, High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.

3) The brightness can be adjustable to meet the need of changing requirement of customer in environment.

4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger.

7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours, and its easy to operate the system.

8) Convenient installation and maintenance of display modules.

Technical Parameter - - - - Reasonable price p3 indoor led screen, high quality led p3 | Pixel Information | Pixel Pitch | 3mm | Technology | SMD 3 in 1 | Pixel Density | 111111 Pixels/m2 | Pixel Configuration | 1R1G1B | LED Module | Module Size | 192 mm (Width) 96 mm(Height) = 0.018432/m2 | Module Resolution | 64 pixels(Width) 32 pixels(Height) = 2048pixels | LED Cabinet | Cabinet Size | 576 mm(Width) 576 mm(Height) = 0.331776/m2 | Cabinet Resolution | 192 Pixels(Width) 192 Pixels(Height) = 36864 Pixels | Total QYT Module Per Cabinet | 3 Modules(Width) 6 Modules(Height) = 18 Modules | Cabinet Weight | 40kg | Cabinet Material | Steel or aluminum | Power | Input Voltage | 100-240V AC, 50/60Hz | Max Power Consumption | 800 Watt/m2 | Avg.

Power Consumption | 400 Watt/m2 | Viewing | White Balance | | X= 0.33 Y= 0.33 5600K(Adjustable up to 9000K) | | Brightness | 1200cd/m2 | Brightness Uniformity | Luminance Discrepancy < 5% | Colors | 16777216 | Grey Scale(Level) | 4096 | Slot Between Neighboring Modules | < 1 mm | Best Viewing Angle | Horizontal: 160, Vertical: 160 | Viewing Distance | 3 - 45 meters | Ambint Conditions | Temperature Range | Storage: -40deg.

to +85deg.

; Working: -20deg.

to +60deg | Operating Humidity | 10%90%RH | Ingression Protection Grade | IP31 | Processing | Scanning Mode | 1/16 Scan | Refresh Frequency | 180HZ-600HZ, Adjustable | Signal Input | DVI, Composite Video for Live Video | Supported Networking | Through LAN/WAN, RS 232/RS485 | | PC based | Other | Life Span | 50, 000 - 100, 000 Hours | Software | Linsn | - - - -
