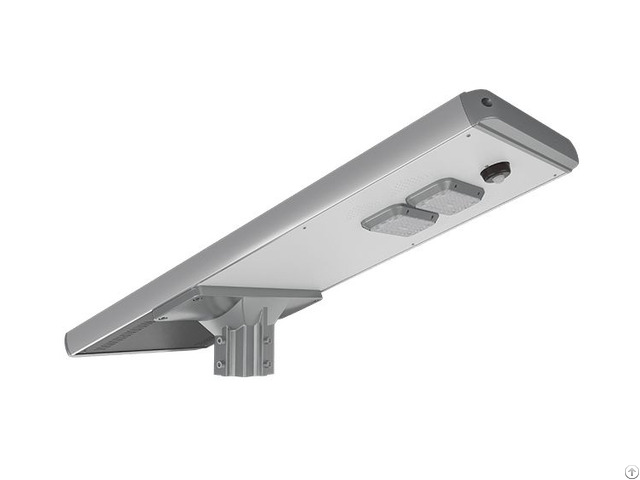

Sensor 60w Solar Parking Lot Lighting - China

Model：

ZGSM-PV706027

Application：

Street | Road | Highway | Parking lot | Path | Microwave Sensor Solar LED Light

KEY FEATURES

1 - Wide power range: 10W~60W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - High Lumen output up to 145lm/ w with high quality LED chips.

4 - Lithium batteryimproves the reliability of the luminaire.

5 - Monocrystalline silicon solar panels, greatly improving solar energy conversion efficiency.

6 - Smart MPPT controller realizes intelligent control of lamps.

7 - Multiple lighting control options are available, e.g. motion sensor, PIR sensor.

SPECIFICATIONS

Model ZGSM-PV706027

LED Number 90units

Nominal Power 60W

Battery Spec.

27AH /11.1V

Solar Panel Spec.

Monocrystal 70W /18V

LED Brand Philips Lumileds 3030 2D

Luminous Flux 7800lm

Light type 1S

CCT 3000K.

4000K.

5000K.

5700K

Charge time <4.5 Hours (Low battery voltage)

Worktime at Energy

-saving Model(30%) more than 13 hours

Discharge Temperature -20℃~+60℃

Charge temperature <60℃

Light control voltage 5-11V

mounting height 6-8m

space between light 18~35m

Pole Diamerter Fixture Round pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm

Rating IP65 IK10

Induction Type Human infrared induction or microwave induction function

Certification CE, ROHS, LM80

warranty period 3 years PACKING DETAILS

Fixture Dimension 1120x426x229mm

Fixture Weight 17.8kg

Packing Dimension 1175X485X140mm

Packing Weight 19.4kg
