Series H4 Modular Led Highway Light - China

Zgsm-gcd120h4 suspended 120w modular design high bay led lighting

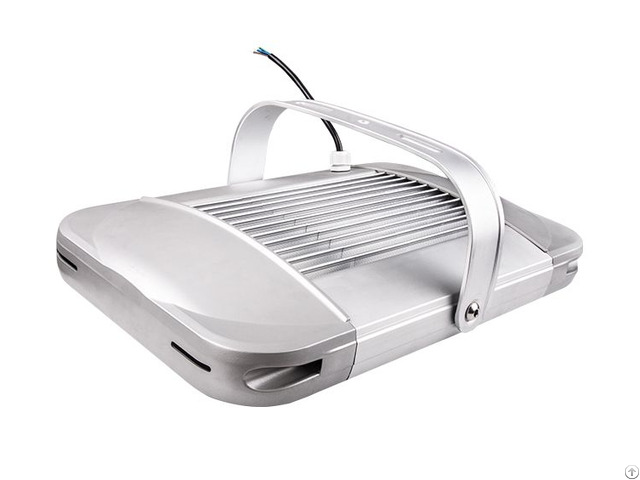

series h4 modular led highway light

model：

zgsm-gcd120h4

application：

warehouse | workshop modular led high bay light | garage | billboard led high bay lighting | area | building

we also provide tool less led street lights, ul certified led high bay light, garage led high bay light, tennis court led flood light and soon.

zgsm is a hi-tech and private enterprise devoted to r&d, producing and selling of economical led street light, building led high bay light, lithium battery solar power system and so on.

as one of the patent model enterprises and the first batch of energy-saving service company in zhejiang province, we have registered more than sixty products; we are also the members of illuminating engineering society and semiconductor industry association in china.

key features

1 - wide power range: 40w~360w.

2 - special circuit design, single led’s damage won't affect others' normal work.

3 - modular design for easy installation, replacement and maintenance.

4 - high lumen output up to 165lm/ w with high quality led chips.

5 - various applications with different mounting accessories.

6 - multiple lighting control options are available, e.g. dali, 1-10v, motion sensor.

7 - designed to last at least 100, 000 hours at l70.

8 - multiple lighting distributions are available.

area led high bay lighting specifications

model zgsm-gcd120h4

led brand lumileds luxeon 3030/5050

driver brand meanwell hlg series

norminal wattage 120w

led module quantity 3 modules

input voltage 100-240/277/347/480vac


power efficiency >90%

power factor >0.95

lamp rated luminous efficiency 140-165 lm/w

lamp rated lumen output 16800-19800 lm (lumen tolerance +/- 5%)

color rendering index 70 (80 is optional)

color temperature 3000k, 4000k, 5000k or 5700k

photometric type 60, 90, 110 degrees

optimal operating temperature 25℃
