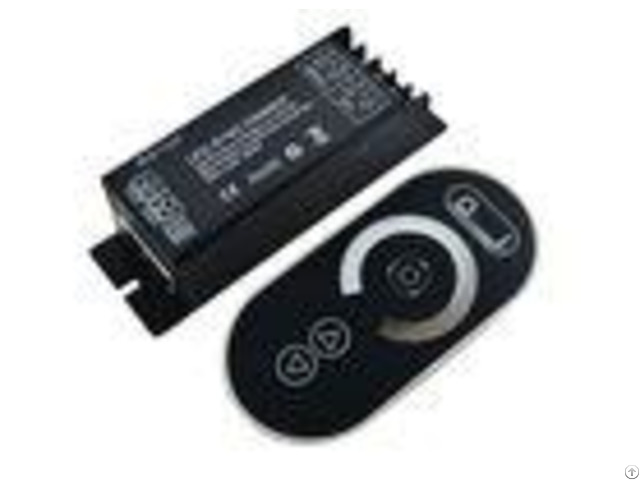

Smart Design Neon Light Accessories Wireless Rgb Led Dimmer Controller - China
price: check with company for price
RF Touch Dimmer Dimmer adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip.
Adopt full touch RF remote control.
5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value.
Particularly, there is a sense light in the remote control center.
It shows the exactly light which was be touched.
As the led strip is the same brightness level.
Further, there are 3 dynamic modes in the mode button, and the speed is adjustable.
In order to achieve the market need, the synchronization work of more lamps, it is designed the conjunction-sync-work function with RJ45 connecter, user-friendly.
Product Feature # Adopt PWM technology, and the dimming ring in the center has 128 levels in different brightness value, smooth and flicker-free.
# High watt output design, up to 1*25A/ 300W.
# Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
# Adopt RF remote control technology and full touch design.
# Designing for: LED constant voltage single color product like LED single color strip.
# 2-year warranty.
Technical Parameters Controller - - - - Working temperature | -20-60 | Supply voltage | DC12V-24V | Static power consumption | <1W | Connecting mode | common anode | Grayscale | 256 levels | Speed stage | 100 grade | External dimension | L127*W41*H32 mm | Packing size | L147*W85*H73 mm | Net weight | 240g | Gross weight | 320g | Output | 1 channels | Output current | 25A | Mode | 3 | Remote distance | Up to 20M | PWM frequency | 433.92Mhz | Memory function | support | Max.
Output power | 12V-24v: <300W | - - - - Remote control - - - - Working temperature | -20~60 | Supply voltage | DC4.5V(AAA*3pcs) | Standby current | <8uA | Working current | <30mA | Standby power | <36uW | Working power | 135mW | Net weight | 90g | RF frequency | 433.92MHz | External dimension | L113*W55*H22 mm | RF distance | 20m | - - - - External Dimension Packing box: L147*W85*H73mm The function of each button as below: - - - - Name of key | Instruction | Remarks | ON | ON in any time | | OFF | OFF in any time | | Mode | The mode will move to next, when touch the key each time | 3 modes in total.
| Speed/Brightness + | The Speed/Brightness will +1, when touch the key each time | Speed for dynamic modes, Brightness for static modes.
| Speed/Brightness - | The Speed/Brightness will -1, when touch the key each time | Speed for dynamic modes, Brightness for static modes.
| Dimming Ring | Touch any brightness value which you want | | - - - - 3 modes in total as below: - - - - NO | Patterns | Remarks | 1 | Static 100% light | Brightness is adjustable, speed is unadjustable | 2 | flash | Speed is adjustable, brightness is unadjustable | 3 | fade | - - - -
Company Contact:
- Posted By: TOPATOM International Company
- Phone: 86-755-27363668
- Address: 6F, Building 2rd, Baishunjia Industrial Park, shangshijia, Guagnming New District, Shenzhen City, Gu, Shenzhen , Guangdong , China
- Email:
Published date: January 24, 2018
- Business Description: TOPATOM has invested heavily in developing LED-based products for the commercial lighting industry.
The companys products are backed by patented technology and developed by engineers and designers who have a wealth of combined experience in the lighting industry.
