Standard Led Flat Round Downlight - China

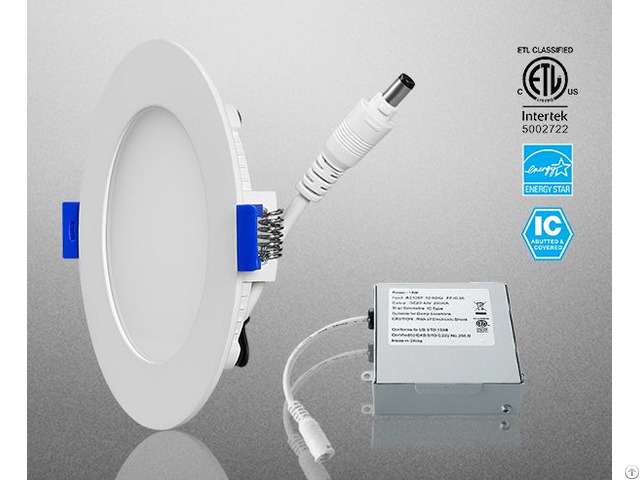

Standard LED Flat Round Downlight with Junction Box 75lm/W, Ra>82, Dimmable, 5 years Warranty, CETL & ENERGY SATR

Flat Panel Light

Recessed Led Panel Light

Key Features:

1'' Thin: Fits in Tight Ceiling Space.

Air Tight & Type IC Rated: No housing Required.

Fast & Easy Installation: Save labor cost.

Junction Box Included: No additional hardware required.

CRI 82: True color rendering is for option .

ETL-listed: reliable quality and safe operation.

Energy Star certification.

Suitable for damp locations.

Description:

The Goldsuno’s Standard TM 4” & 6” LED flat Downlights combine high quality light output and efficiency while eliminating the need for recessed housing for competitive affordability.

The innovative, slim design allows for easy retrofit, remodel for new construction installation from below the ceiling.

With its narrow design, it can be installed in application with only 2” plenum clearance.

The LED flat Downlight and remote driver with junction box are wet location approved, making them ideal for a breath of indoor residential, hospital, commercial and multifamily application.

Specification:

Model Number Power Lumen EFF Lumen *2 Beam Angle Dimming Rated*3 IP (5, 000K) Life (L70) JXL-TZ04-T10W-UDH 10W 70lm/W 700lm 110° Triac 45, 000h IP40

JXL-TZ06-T12W-UDH 12W 75lm/W 900lm 110° Triac 45, 000h IP40

Order information: For shortest lead times, configure product using standard options.

JXL-CH04-T10W-UDH 30K 80 MW Example：

Series CCT *1 CRI Finish JXL-CH04-T10W-UDH-30K80MW

Economic TM 30K: 3000K 80CRI MW: Matte white 4” LED flat Downlights 40K: 4000K MB: Matte black 50K: 5000K BN: Brushed nickle 60K: 6000K *1 Color temperatures conform to nominal CCTs as defined in ANSI Chromaticity Standard C78.377A.

*2 Lumen measurement compies with IES LM-79-08 testing procedures.

*3 L70 = 70% lumen maintenance (when light output drops below 70% of initial output).

Ambient luminaire temperatures specified.

Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source manufacturers.

Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.

We have subordinate department: shell production, heat-dissipation design and manufacture; LED driver R&D and application; high transmittance, anti-glare PC cover and reflector design and manufacture; SMD automatic produce and assembly; aging testing etc.

Since 2009, we have obtained 12 patent technologies.

LED down light series were UL, TUV/CE, SAA, RoHS approved.

We endeavor in providing customers with stable, high quality and competitive products.
