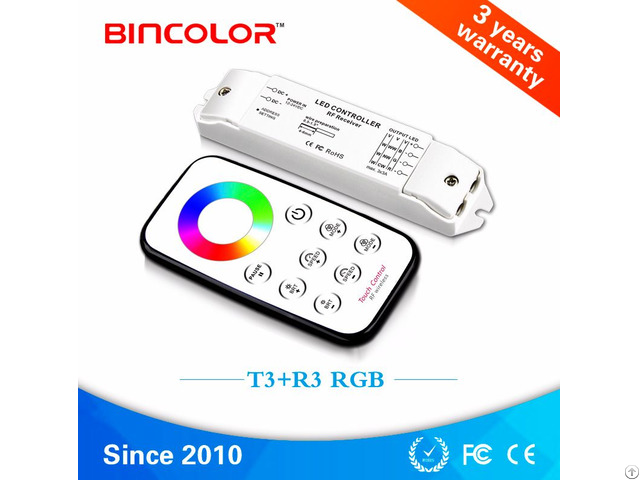

T Series Wireless Remote T3 R3 - China

Welcome to use this LED Controller series, This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles.

With our R Series receiver, it is easy to change lamp lights such as: dimming, color temperature, RGB etc; thus can satisfy the different demands of clients.

T series have a simple fashion design, comfortable hand feeling, and user friendly.

Feature function:

1 - Automatically adapt to LED light which works from DC12V-24V.

2 - The receiver volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.

3 - Using RF remote control, the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause, change mode, brightness and speed, etc.

4.10 strobe & fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.

Product parameter：

Model Wireless Remote(T3)

Working Voltage 3V(CR2032)

Working Frequency 433.92MHz

Remote Distance 40m-50m

Working Temp -20-55℃ Dimensions L106×W56×H9(mm)

Weight(N.W.) 40g Model Receiver(R3)

Compatible Remote T1/T2/T3/T5

Working Voltage DC12V-DC24V

Output Current Max 3A×3CH

Output Power Max 108W(12V)/216W(24V) Working Temp -30℃-55℃

Dimensions L135×W30×H20(mm)

Weight(N.W.) 48g
