Ul And Dlc Listed 200w Modular Design Led Bridge Light Factory - China

UL AND DLC LISTED 200W Modular Design LED Bridge Light FACTORY

outdoor street lights, LED Highway Light

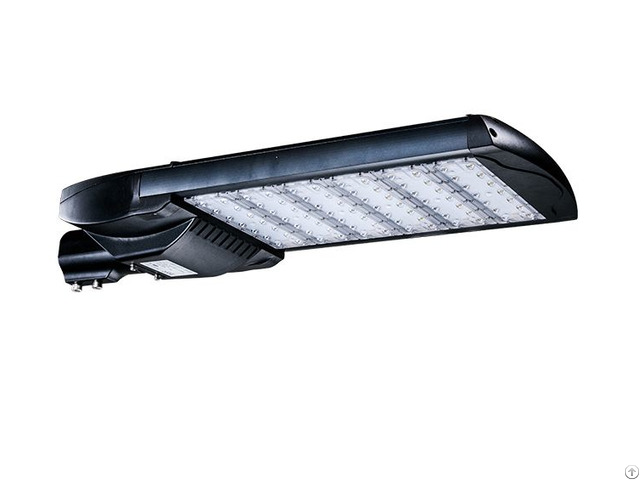

Series H LED Street Light

Model：

ZGSM-LD200H

Application：

Street | Road | Highway | Parking lot | Bridge | Path

1 - Wide power range: 35W~320W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Modular design and tool-less open for easy replacement and maintenance.

4 - Power-off protection makes the power automatically off when fixture is opened (optional).

5 - Level bubble makes it easy for the installer to adjust the position of the lamp.

6 - Breather ensures air balance inside and outside of driver box of the lamp.

7 - High Lumen output up to 165lm/ w with high quality LED chips.

8 - 1000 hours salt spray test report.

9 - Vertical and horizontal installation both available, adjustable by ±15°in both directions.

10 - Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11 - Designed to last at least 100, 000 hours at L70.

12 - Multiple lighting distributions are available.

13 - CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14 - 7 years warranty SPECIFICATIONS

Specifications

Model ZGSM-LD200H

LED Brand Lumileds Luxeon TX

Driver Brand Meanwell or Inventronics

Norminal Wattage 200W

LED Module Quantity 6 modules

Input Voltage 100-240/277VAC

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency >110lm/w

Lamp Rated Lumen output 22000 lm (Lumen tolerance +/- 5%)

Color Rendering Index Ra>70

Color Temperature 3000K or 4000K or 5000K or 5700K
