100a Ac Current Clamp 15mm Hole Handheld High Precision Split Core Ct Transformer Probe Sensor - China

price: 195.00 Dollar US$

100a Ac Current Clamp 15mm Hole Handheld High Precision Split Core Ct Transformer Probe Sensor

Products Photos Catalog 100a Current Clamp Photos Catalog

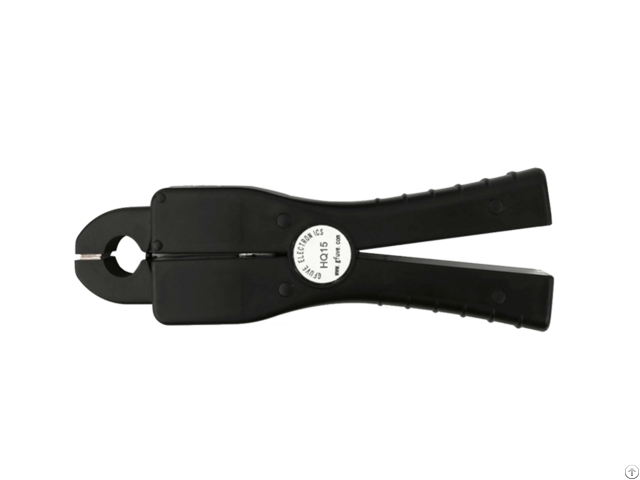

The HQ15 100a current probe sensor is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

The sensing head uses sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged objects directly.

It complies with CE standards and meets 300V CAT III safety class.

This model HQ15 current sensor is a high accuracy mini current probe for measurements up to 130A AC.

This current probe uses a special magnetic core to provide higher accuracy and lower phase shift.

The HQ15 Series is an excellent probe sensor to be used in power and low level current measurement applications.

Electrical parameters

Ratio: 1000: 1, 2000: 1, 2500: 1 (customized)

Accuracy class: 0.1%, 0.2%

Primary current: 0 - 5A AC and 0-100A AC

Signal output: 10mV/A, 1mV/A, 1mA/A

Secondary voltage: 0 - 0.05V AC, 0 - 0.1V AC, 0 - 1V AC;

Secondary current: 0-5mA or 0-100mA AC

Max.

Cont.

Input current: 130A

Load capacity: ≤10Ω, standard 4Ω

Over voltage category: CAT III 600V

Frequency range: 40Hz-5KHz

Dielectric strength: 3KV 50Hz/60Hz at 1minute

Temperature range: -40°C to +55°C

Output: 2.5 meter cable with D01 or BNC connector

Max.

voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

IEC60044-1, & IEC61869-2, 600V CAT III

Installation: clamp type

Range: 5A, 10A, 100A optional

Output mode: lead output(2.5m)

Connector: 4mm banana, BNC, signal cable(2 cores), customized Accuracy (100A Range)

0-100mA: ≤0.5%

100mA-1A: ≤0.2%

1-130A: ≤0.1% Phase Shift(100A Range)

0-100mA: ≤0.5°

100mA-10A: ≤0.2°

10-130A: ≤0.1° Mechanical parameters

Dimensions (L x W x H) (mm): 46 x 162 x 25

Weight (g): 320

Holding wire diameter (mm): φ15

Max.

jaw opening (mm): 13

Jaw color: Black

Material: PC+ABS, UL94 V0


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email

Published date: February 2, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
