10a Ac 40 2000hz Handheld Current Clamp Gfuve P8 8mm Hole Split Core Ct Transformer Probe Sensor - China

price: 65.00 Dollar US$

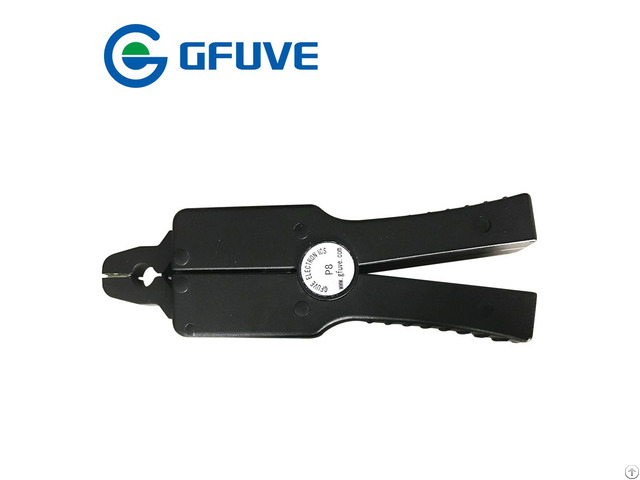

10a Ac 40 2000hz Handheld Current Clamp Gfuve P8 8mm Hole Split Core Ct Transformer Probe Sensor

Products Photos Catalog 10a 2000hz Handheld Photos Catalog

The P8 current clamp ct is an affordable & durable mini current clamp ct for measurements to 10A AC.

This current clamp ct uses a special magnetic core to provide higher accuracy and lower phase shift.

The P8 Series AC current clamp ct is a cheap and economic current clamp probe to be used in power and low level current measurement applications.

Electrical parameters

Ratio: 2500: 1, 2000: 1 or 1000: 1 (customized)

Accuracy class: 0.2%, 0.5%

Phase shift: <10'

Primary current: 0 - 10A AC

Secondary current: 0 - 10mA AC (customized)

Secondary voltage: 0-0.1V AC, 0-0.5V AC, 0-1V AC, 0-5V AC

Max.

Cont.

Input current: 20A

Load capacity: ≤10Ω, Standard 4Ω

Over voltage category: CAT III 600V

Output signal (AC current): From 0 to 10mA AC at nominal input current

Output signal (AC voltage): From 0 to 0.5V AC at nominal input current

Frequency range: 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max.

voltage not insulated conductors: 720 V

Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

IEC60044-1, & IEC61869-2, 600V CAT III

Installation: clamp type

Output mode: lead output(2.5m)

Connector: Audio connector, BNC, 4mm banana, signal cable(2 cores) Mechanical parameters

Dimensions (L x W x H) (mm): 42× 139 × 20

Weight (g): 180

Holding wire diameter (mm): φ8

Max.

jaw opening (mm): 8

Jaw color: Black

Material: PC+ABS+Polycarbonate, UL94 V0


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email

Published date: February 1, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
