24v Long Lifetime And High Torque Permanent Magnetic Coreless Dc Motor For Precision Instrument - China

Series: DR1641B

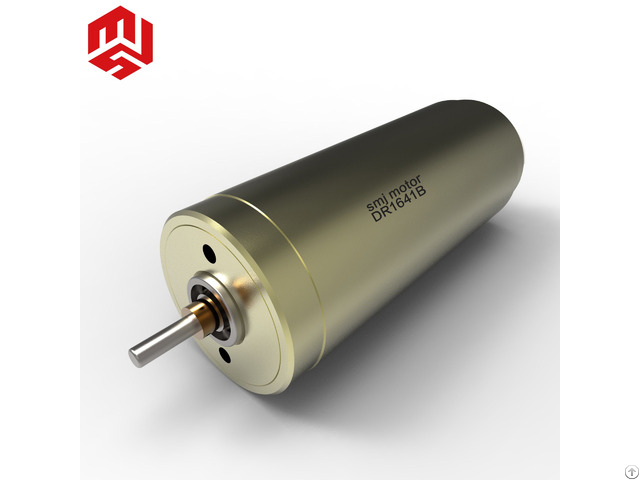

24V long lifetime and high torque permanent magnetic coreless dc motor for precision instrument

Warranty: 3months-1year

Place of Origin: China

Brand Name: SMJ

Usage: BOAT, Electric Bicycle, SMART HOME, precision instrument

Type: Brush Motor

Torque: 4.4mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 12200rpm


Continuous Current(A): 0.13-1.04A

Efficiency: IE 1

Stall Torque: 5.1mNm

Torque max: 1.5mNm

Diameter: 16mm

Length: 24mm

Motor type: Ironless

Brush type: graphite brushes

certification: CE

MOQ: 1 Pcs

DC brushed motor (coreless) application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office

equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.

Important: Please email us to get the detail specification.
