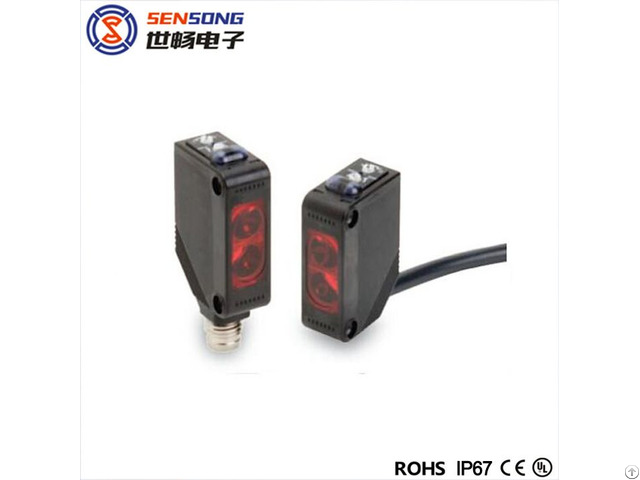

31mm Square Diffuse Retro Reflective Photoelectric Sensor - China

High Stability

Dust-Proof, Water-Proof and Oil-Proof

Multi-type Sensors, Match Personalized Needs

Strict Inspection, High Quality 31mm Square Mini Photoelectric Sensor

Square Type Optical Sensor Mini Type Optical Sensor

Sensing Mode: Diffuse Mode, Through-beam Mode, Retro-Reflective Mode

Dimension: 31.5mm*20.2m m*12mm

Switching Distance:

110mm / 350mm /800mm (diffuse mode)

5m /10 m (through-beam mode)

0.1m~4m (retro-reflective mode) Voltage: 10-30VDC

Residual Ripple: ≤10%

Tolerance: ±10% Sn

Hysteresis : <10%

Emission:

Infrared 880nm

660nm (retro-reflective mode with polarizing filters)

Output Function: NPN or PNP(Programmable) Max.

Output Current: 200mA

No Load Current: 30mA or less

Voltage Drop(Sensor On): ≤2.5V

Sensitivity Adjustment: Trimmer 1 tum

Response Time: 1ms

Short Circuit Protection: YES

Electronic Protection: YES

Temperature: -25 - +55°C

Ambient Humidity: 35 to 85% RH

Light Immunity: ≤10.000Lux

Protection Degree: IP65

Housing Material: ABS Plastic

Sensing Object: 10x250px white paper / 20x500px white paper

Diffuse-PNP Light on + Dark on:

PA2P-D310800IP-C4W2(ca ble) / PA2P-D310800IP-CPW4(M8 connector)

Diffuse-NPN Light on + Dark on:
