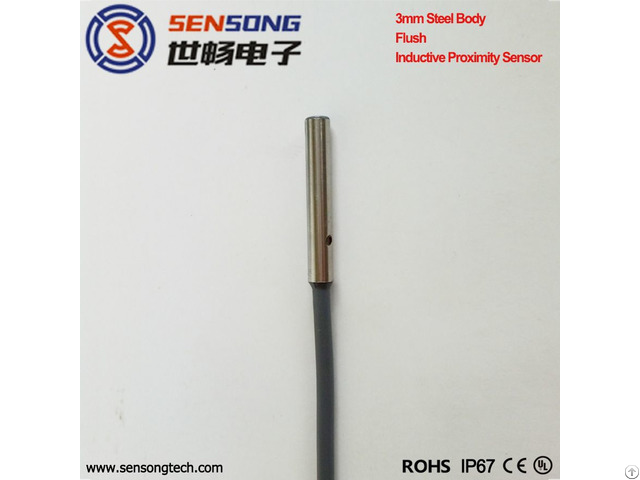

3mm Diameter Ultra Mini Stainless Steel Body Flush Inductive Proximity Sensor 10 30vdc Npn Pnp No Nc - China

3mm Inductive sensor, also inductive switch, inductance sensor, inductance switch, is based on Faraday's law of induction and is one type of proximity sensor/switch.

An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed.

SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications.

It incluses NPN and PNP two output and NO / NC two output function with 10-30VDC operating voltage.

Diameter Φ3mm Switching Distance 0.6mm / 0.8mm (Flush) Housing Material Sainless steel With LED Yes Operating Voltage 10-30VDC Ripple <10% No Load Current <10mA Max.

Load Current 100mA Leakge Current <0.01mA Voltage Drop <1.5V Switching Frequency 2KHZ Response Time 0.1ms Switching Hysteresis <15%(Sr) Repeat Accuracy <1.0%(Sr) Protection Category IP67 Operating Temperature -25℃-+70℃ Temperature Drift <10%(Sr) Short circuit protection Yes Reverse polarity protection Yes Overload Trip Point 120mA Certifications CE, ROHS, UL Connection 2m Cable, 3 Pin M8 connector, 3 Pin M8 Pigtail

Packaging & Shipping

Package: 100pcs/CTN

Gross weight: 10kgs/CTN

Volume: 0.027CBM/CTN

Delivery Detail: Shipped in 15 days after payment Our Services

1 - Delivery: A.

Fast Delivery: 3 to 5 days.

B.

Cheap Delivery: 15 to 25 days.

2 - Modes of Transportation UPS/DHL/FEDEX/TNT/EMS/Ara mex, Door To Door, Door To Airport.

3 - Refound/warranty Policy We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.

4 - Payment Terms: T/T, Paypal, Western Union, L/C FAQ

What is our MOQ? Sample: 1pcs (charged) Order: 100 pcs OEM item: Depends on your Qty.

How to purchase our products? Step-1, Please tell us the model No.

you are interested in, Quantity, sensing distance, out put function and other specification Step-2, Please tell us your installation environment, working temperature, we could recommend the most suitable products.

Step-3, Proforma Invoice with order details as your requested will be sent to your mailbox, goods will be delivered upon receipt of your full payment and shipping instruction
