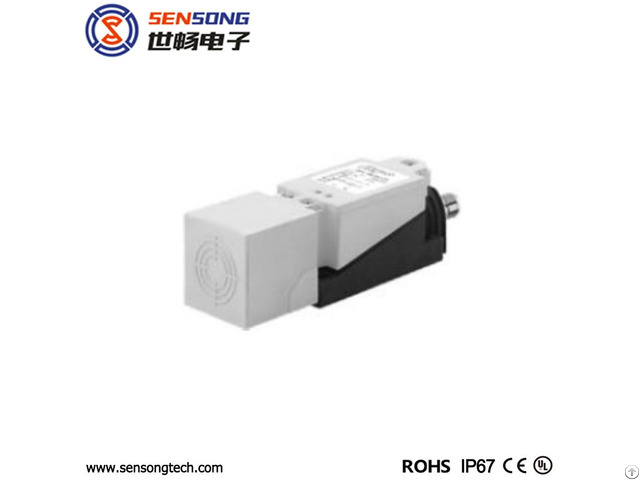

40x40x118mm Pbt Body Non Flush Rectangular Inductive Proximity Sensor Switch Npn Pnp - China

40x40x118mm Length Non-Flush Mounting PBT Body Rectangular Inductive Proximity Sensor, also Rectangular inductive proximity switch, Rectangular inductance sensor, Rectangular inductance switch, is based on Faraday's law of induction and is one type of proximity sensor/switch.

An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed.

SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications.

Usually it have a operting voltae range of 10-30Vdc with NPN-NO, NPN-NC, PNP-NO, PNO-NC output function and 2 connection versions that include Cable Terminal with PG Connector version and 4 Pins Euro Style M12 Connector version.

Diameter

40x40mm

Switching Distance

40mm (Non-Flush) Housing Material

PBT Resin

With LED

Yes

Operating Voltage

10-30VDC

Ripple

<10%

No Load Current

<10mA

Max.

Load Current

200mA

Leakge Current <0.01mA

Voltage Drop

<2.0

Switching Frequency

100Hz

Response Time

1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<1.0%(Sr)

Protection Category

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short circuit protection

Yes

Reverse polarity protection

Yes

Overload Trip Point

220mA

Certifications

CE, ROHS, UL

Connection Cable Terminal with PG Connector
