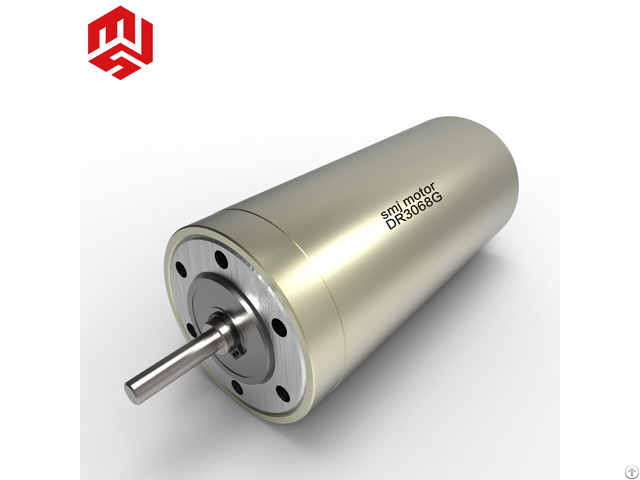

48v Advance Technology Magnetic Dc Brush Motor For Robotics And Grippers - China

Series: DR3068G

48V Advance technology magnetic DC brush motor for robotics and grippers Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Electric Bicycle, SMART HOME, AGVS, automatic industry and medical machines

Type: Brush Motor

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 7910rmp

Continuous Current(A): 1.66-3.67A

Efficiency: IE 1

Torque max: 89.7mNm

Stall Torque: 1050mNm

Diameter: 22mm

Length: 31.9mm

Motor type: coreless

Brush type: graphite brushes

certification: CE The motor can be 12v, 18v, 24v or 48v and has high torque density and please review below parameters.

DC electro magnetic motors (coreless) application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office

equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.
