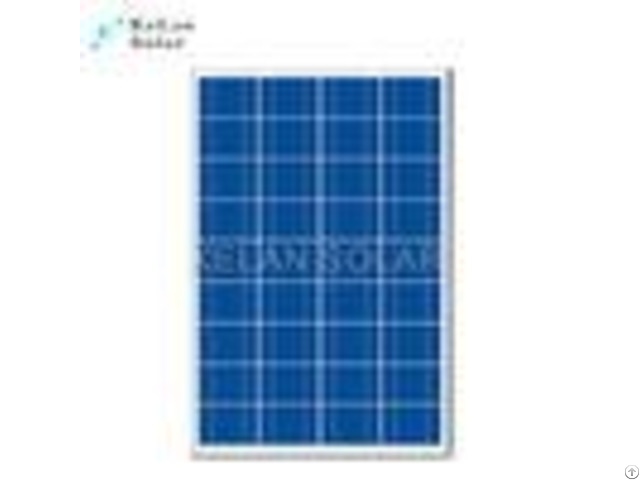

80w Home Multicrystalline Solar Panelsblack Frames Boost Bearing Capability - China

80Wp polycrystalline PV module for rooftop/ground use, Power systems installed on private, industrial and commerical roofs.

Product Description 80W TUV/CE/IEC/Mcs Approved Poly-Crystalline Solar Panel for solar street light Features: High conversion efficiency Low power tolerance of 0~+3% Low degradation under light exposure Can withstand high wind-pressure, snow load and extreme temperature Passing IEC 61215 5400Pa mechanical load test Quality and Safety: 10-year warranty on product materials and processing technology Power output warranty: 10 years: 90%, 25 years: 80% ISO 9001: 2008(Quality Management System) certified factory IEC61215, IEC61730, MCS CEC certified products TUV, CE conformity Applications On-grid residential roof-tops On-grid commercial/industrial roof-tops Solar power plants Off-grid system Other on-grid applications Specifications: - - - - Solar Panel Parameters | KL-80W-P | Optimized working voltage | 18V | Optimized working current | 4.45A | Open circuit voltage | 21.6V | Short circuit current | 3.704A | Nominal power | 80W | Operating temperature | -40 to+85 | Maximum system voltage | 1000VDC(IEC)/600VDC(UL) | Series fuse rated value | 20A | Power tolerance | 3% | Cell specification | 15678mm | Arrangement quantity | 42(314) | Solar panel dimension | 120054035mm | Weight | 8.0kg | Glass specification | 3.2mm(0.13inch) tempered glass | Frame | Anodised aluminium alloy | Rated operating temperature | 452 | Pmax temperature parameter | -(0.480.05)%/ | Voc temperature coefficient: | -(0.340.1)%/ | Isc temperature coefficient | 0.040.01%/ | Notic: Data under standard testing condition (STC): 1000W/, AM1.5, 25 - | - - - - Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA anti-aging EVA, excellent weathering resistance TPT Payment - - - - Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | FOB | CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | CIF | L/C | L/C amount above 50, 000 usd, we can accept L/C at sight | West Union | Amount lower than 5000usd | West Union | Delivery Time | 7~10days after receiving payment for one container | - - - -

Company Contact:

• Posted By: Ningbo Kelan Solar Electric Co., Ltd.

• Phone: 86-574-86768338

• Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China

• Email:

• Website: https://www.monocrystalsolarpanel.com

• Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.

  Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
