Abb 500cpu05 Logic Controller Module - China

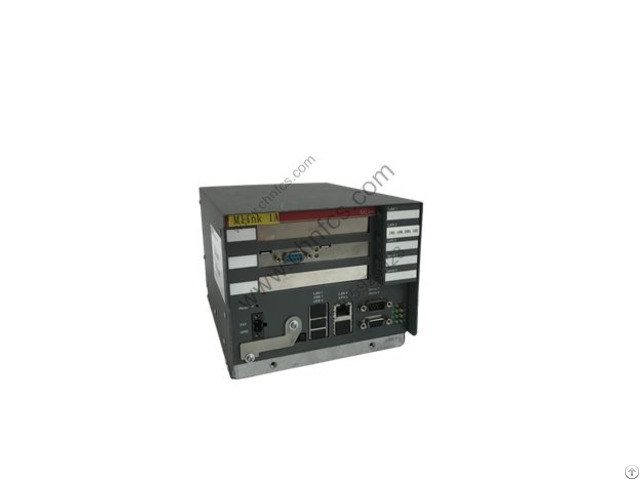

DESCRIPTION The ABB 500CPU05 (1MRB150081R1/E) is a high-performance programmable logic controller (PLC) module belonging to ABB’s AC500 series.

This module plays a central role in the automation control system and is responsible for the control and data processing tasks of the entire system.

The following is a specific analysis: Product Overview

Definition and Function: The ABB 500CPU05 is a PLC CPU module designed for medium to large control applications.

It is capable of executing complex control logic, managing multiple input/output (I/O) devices, and communicating with other systems such as human-machine interfaces (HMIs) and supervisory control and data acquisition (SCADA) systems.

Family: This CPU module is part of the ABB AC500 family, which is widely recognized as a high-performance, highly reliable automation solution.

Technical specifications

CPU type and speed: The ABB 500CPU05 is equipped with the model 80196 CPU with a clock frequency of 10 MHz, providing enough processing speed to cope with the demands of most industrial applications.

Memory capacity: With a memory capacity of 128 KB, this allows the user to store and execute relatively complex programs and functions.

I/O capacity: Supports up to 256 I/O points, which means it can connect and control a large number of sensors and actuators, suitable for a wide range of control tasks.

Communication interfaces: The module provides communication interfaces such as PROFIBUS and MPI, ensuring compatibility and connectivity with other industrial equipment and systems.

Key features

Modular design: The modular design of the ABB 500CPU05 allows users to flexibly select and configure hardware as needed, simplifying system upgrades and maintenance.

Expandability: As application requirements grow or change, users can easily add or replace modules to accommodate new control tasks.

Application Areas

Manufacturing automation: In line automation, robot control and other manufacturing processes, the ABB 500CPU05 provides a stable and efficient control solution.

Process control: In the chemical, pharmaceutical and other industries, the module is able to handle complex process control tasks, ensuring accurate and continuous production processes.

Infrastructure control: Suitable for the control of public infrastructure such as power, water and waste management, it improves system reliability and efficiency.

Installation and use

Installation steps: Install the 500CPU05 module in the S5-500 rack, connect to the appropriate power supply and I/O modules, then load the application program into the module memory, and finally power on the system and start the application program.

Recommendations for use: To ensure optimal system performance, regular system maintenance and software updates are recommended, as well as ensuring that all connections and configurations are set up correctly according to ABB specifications.

It is also vital to assess its actual performance in different industrial environments and how to maximize the return on investment by selecting the right modules and configurations.

The following points should be considered when selecting such key components: Compatibility assessment: Ensure that the selected module is compatible with existing PLC systems and field devices.

Cost-benefit analysis: Evaluate the performance metrics of the module in relation to its cost to ensure that the chosen solution is affordable and meets the technical requirements.

Technical support and service: Understand the technical support and service commitments offered by the supplier and choose a reliable supplier that offers comprehensive customer support.

Overall, the ABB 500CPU05 (1MRB150081R1/E) is a powerful and reliable PLC CPU module for a wide range of industrial automation applications.

Its high-performance processing power, modular design and broad compatibility make it ideal for enhancing productivity and system reliability.
