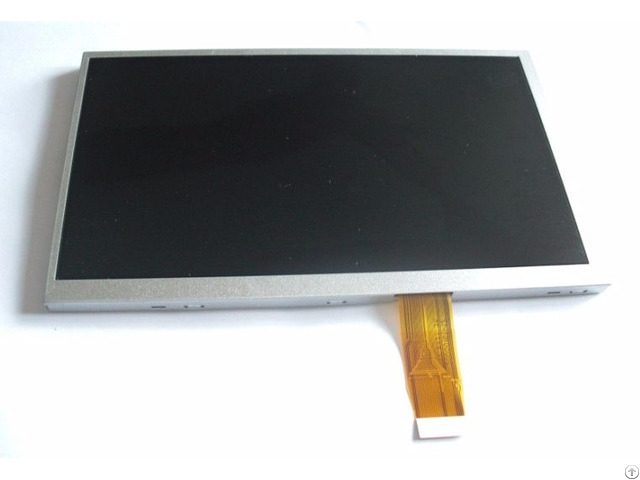

At070tn07 Vd Innolux 7 Inch Tft Lcd 480 X 234 Wqvga - China

Productor Innolux

MODEL AT070TN07 V.

D

Size 7.0"

Resolution 480*234

Resolution Name WQVGA

Display scale 16: 9

Pixel Pitch 0.107*0.370 mm

Panel Composition lcd

Technology a-Si TFT-LCD

Display mode TN, NW, Transmissive

Luminance 200 nits

Contrast Ratio 300: 1

Color Saturation -1%

Response 15/20 (Tr/Td) ms

Viewing Angle 40/60/60/60

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic 1.33 (9 points)

The kind of Singnal Analog

Interface Analog

Singnal Interface Definition BLE-2PINS-AC

Drive-screen voltage (3.3/5.0)/5.0/15.0/-10.0V (VCC/AVDD/AVDD/VGL)

Input Current (NA/3)/17/0.2/0.8mA (ICC/IDD/IGH/IGL)

Brand of Singnal Interface JST

(Pitch of Singnal Interface 3.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 2 pins

Operation Temperature -30 °C ~ 85 °C

Storage Temperature -30°C ~ 85°C

Active Area 154.08*86.58 mm

Display Area 156.5*89.00

Outline 164.90* 100.00*5.70 mm
