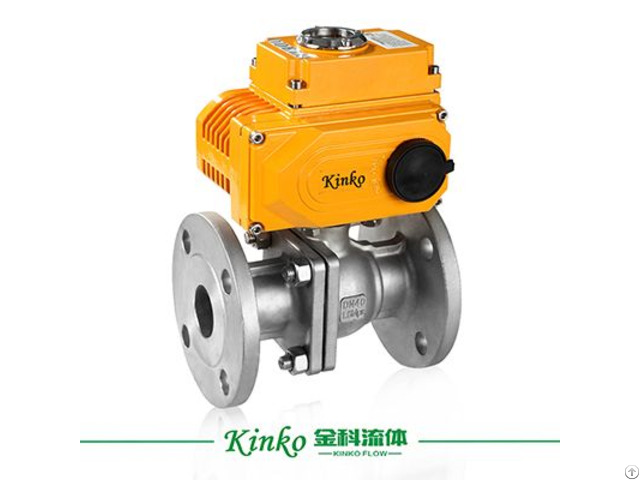

Automatic Ball Valve With Electric Actuator - China

Ball Valve Specification Product Name Q941F-16C

Drive Way electric

Valve Type ball valve

Connection flange

Structure floating straight through

Seal Material PTFE

Working Pressure 0~1.6Mpa/150LB

Medium Temperature -20℃~+180℃

Applicable Medium water, steam, natural gas, oil, food, medicine, acid, alkali

Body Material WCB carbon steel

Port Size DN15-150

Actuator Material Aluminium Alloy

Actuator Model KK-05~KK100

Circuit Control type ON/OFF type

Rotary Angle 90°

Output Torque 50~1000 N/M

Voltage DC24V/110VAC/220VAC/380VA C

Insulation Resistance 100MΩ/500VDC

Working Temperature -20℃~+60℃

Voltage Resistance Rating 1500VAC/minute

Protection Level IP67

Build-in function thermal protection

Installation Position rotary degree 360

Standard GB/JIS/ANSI

Optional function dehumiditifier
