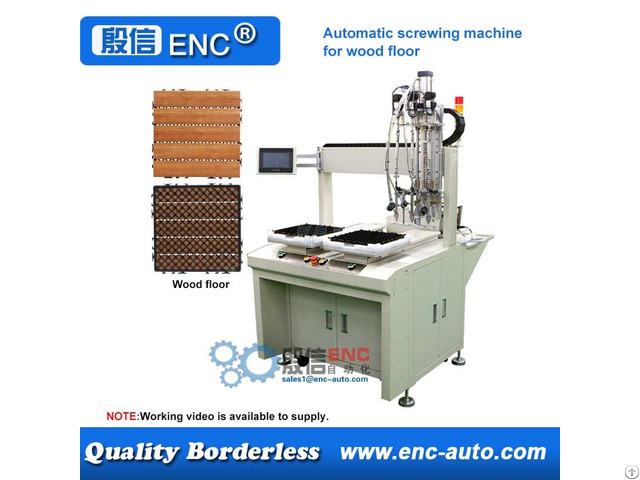

Automatic Screwing Tightening Fastening Machine For Deck Plastic Base Wood Floor - China

Features:

1)This set automatic screwing tightening fastening machine adopt the design of double slipping tables, The left and right station can work in turn.

Semi-finished deck plastic base wood floor loading, finished interlocking plastic decking tiles blanking and screw assembling can go on synchronously without interference.

2)Adopt the three spindles screwing system, It can assemble 3 screws per time, So the productivity can be improved for 3 times at least.

3)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

4)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-700DT

Production efficiency 4~5 pcs/Min.

Universality various types (Just need to replace the fixture and adjust the space among screwing spindles) Power supply 110~240ACV, 50~60Hz

Dimension 1000x8000x1030 mm

Weight 210 kg

Screw driver type Step motor

Capacity of vibration bowl 2000~2500 Pcs

Torque 4 kgf/cm²

Automation level Semi-automatic type
