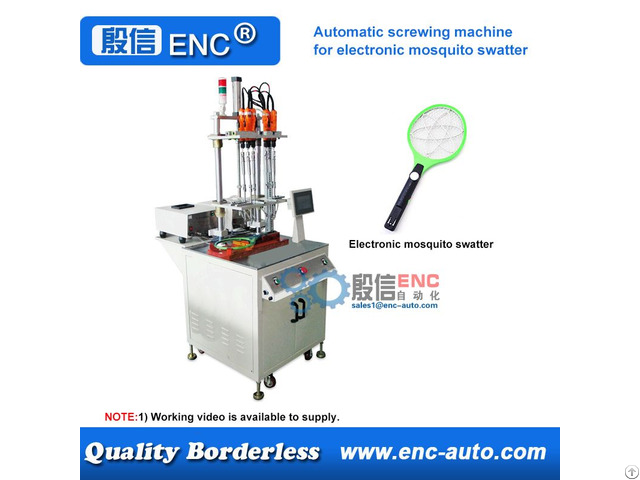

Automatic Screwing Tightening Fastening Machine For Electric Mosquito Swatter Bat - China

Features:

1)This automatic screwing tightening fastening machine for electric mosquito swatter bat adopts five spindles screwing system, It can assembly five pcs of screws per time, the productivity can be improved for 5 times at least.

2)The space between two spindles are adjustable, It can meet the screw assembly requirement of various specification electric mosquito swatter bat just requiring simple adjustment.

3)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

4)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-S470SF

Production efficiency 15~20 pcs/Min.

Universality various types (Just need to replace the fixture and adjust the space among screwing spindles)

Power supply 110~240ACV, 50~60Hz

Dimension 600x910x1780 mm

Weight 190 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 8 kgf/cm²

Automation level Semi-automatic type
