Bel 0826 1x1t 43 F Ykku 8339nl 1 Port Through Hole 1000 Base T Rj45 Magjack Connectors - China

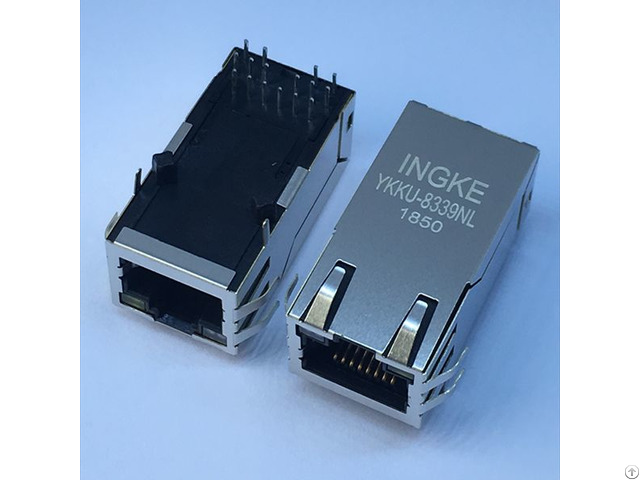

Ingke YKKU-8339NL 100% Cross 0826-1X1T-43-F 1 Port Through Hole 1000 BASE-T Tab Up RJ45 Magjack Connectors Part Number: 0826-1X1T-43-F

Made in China: YKKU-8339NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green, Orange - Yellow

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up

Contact Material: Copper Alloy

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;L8BE-1G1T-BFH 2250506-1 SS-60300-080 SS-60300-081 2250013-4 L834-1G1T-91 SS73100-047F L8BE-1G1T-91A 0826-1X1T-KH-F 0863-2X4R-AY-F 0833-2X4R-AY-F 0833-2X4R-AV-F L811-1X1T-03-F L829-1JX1-D2 L829-121T-43 L829-1JX1-43 0879-2C1R-AYA 0879-2X1R-AY SS-39100-039 L829-1X1T-91 SS-60300-011 0817-1G1T-21-F 0817-1AX1-11-F 0833-2X4R-33-F
