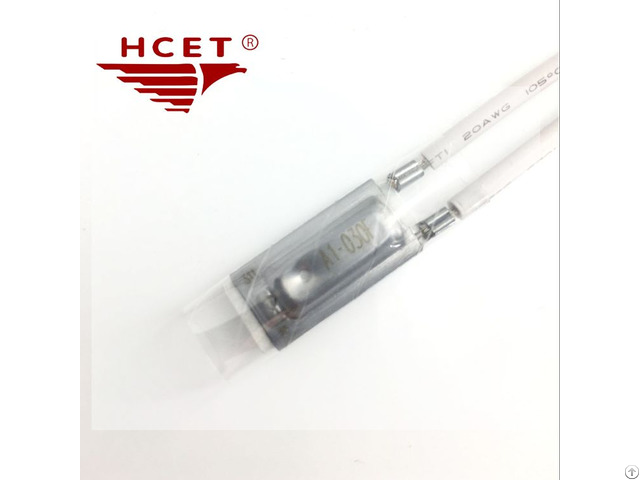

Bimetal Thermostat Vaa2 Series Motor 24v Thermal Switch - China

General information about our VAA2 motor thermal switch VAA2 series thermal protector overload can be widely used in various motors transformers and pumps.

It can equivalent the famous thermal protector manufacture like Sensata and Klixon as well as the famous motor producter like Welling motors, Johnson Electric, Samsung, Sanyo and so on.

Special features of VAA2 motor thermal switch

1 - Temperature sensitive and maximum temperature can reach 180°C

2 - Snap action and can be Normally open or Normally closed type

3 - Terminals can be same or opposite end

4 - Small size but high capacity

5.100% comply with ROHS Electrical ratings of VAA2 interrupteur thermique item Current Voltage

1 3A 12VDC

2 6A 24VDC

3 5A 125VAC

4 3A 250VAC Temperature parameters OF VAA2 interrupteur thermique 1 - Temperature range: 5-180°C

2 - Tolerance: ±5°C Applications of this VAA2 interrupteur thermique:

1 - Home appliances and heating elements

2 - Fluorescent ballast and lightings

3 - Electrical tools and chargers

4 - Transformers and pumps

5 - Various motors and cleaners
