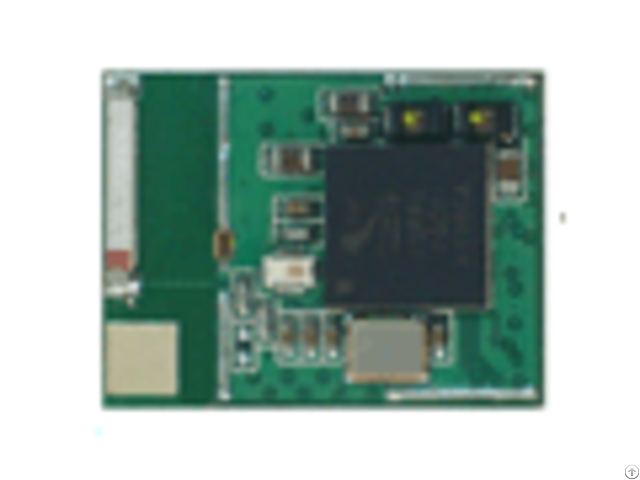

Bluetooth V3 0 Edr 4 0 Le Bt Module Ct Bt14 - Taiwan

Ct-BT14 audio transmitter/Receiver is power by CSR BC8670 technology.

That provides a complete 2.4GHz Bluetooth technology for stereo music transmission.

The Ct-BT14 module is compliant with Bluetooth specification v3.0 EDR, 4.0 LE and support A2DP, AVRCP, HSP, HFP, MAP, SPP and PBAP.

It is the 10dBm module with build in antenna.

Reduce the effort on the RF section when the engineer designs it into the system.

Smart Design also customize the software to meet the requirement from customer.

* CSR BlueCore8670 Chip.

* Bluetooth v3.0 EDR, 4.0 LE Compliant.

* Bluetooth 10dBm RF output power.

Up to 10 meters transmission distance.

* Updated 80 MHz DSP performance.

* two digital microphone input.

* Three touch sensor input.

* Three LED driver.

* USB and UART digital interface.

* Supported A2DP1.2, HSP1.2, HFP1.6( HD voice ready), AVRCP 1.4

* Profile PBAP1.0, MAP1.0(SMS notification) and SPP1.0 under reqeust.

* Fully configurable with simple AT style commands over UART and Bluetooth connections.

* Build in high performance chip antenna.

* Integrated high quality stereo ADC and DAC.

* Dimension: 20.8 X 15.4 X 3mm.

* LGA(Land Grid Array) pads reliable PCB mounting

* Voltage Range : 3.3V±0.2V

* Operating Temperature Range : -30°C ~ 85°C

* Storage Temperature Range : -30°C ~ 85°C

* Relative Humidity (Operating) : <=90%

* Relative Humidity (Storage) : <=90%
