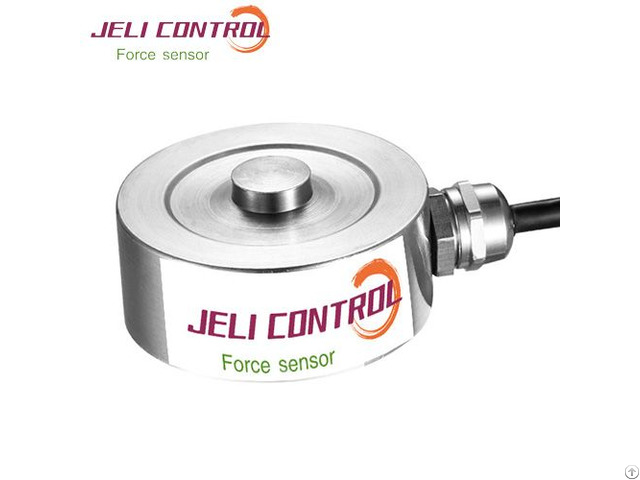

Compression Load Cell 20n 10t J1079 - China

Features & Applications:

• Stainless steel, fully sealed stainless steel cover plate, IP66, suitable for all harsh environments • Used for press-mounting machinery, bearing assembly machinery, axle recognition • Instantaneous force measurement and control of dynamic stamping equipment • Dynamic weight control of hopper scales and tank scales

Product Specification:

Model No J1079

Rated Output 1.5±10%mV/V

Zero Balance ±3%F.

S

Non-Linearity 0.5%F.

S

Hysteresis 0.1%F.

S

Repeatability 0.1%F.

S

Temp.

Effect On Output 0.05%F.

S/10℃

Temp.

Effect On Zero 0.05%F.

S/10℃

Input Impedance 385±10Ω

Output Impedance 350±3Ω

Insulation ≥5000MΩ/100VDC

Recomme nded Excitation 10V

Maximum Excitation 15V

Compensated Temp.

Range -10~60℃

Operating Temperature -20~80℃

Safe Overload 150%F.

S

Ultimate Overload 200%F.

S

Cable Size ø4*3000mm

IP Rating IP66
