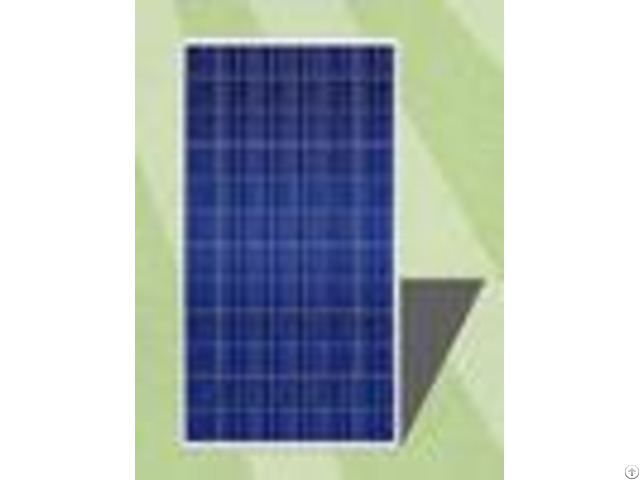

Domestic Multicrystalline Solar Panels300 Watt Anti Aging Eva Dark Blue Frame - China

300Wp Poly Crystalline Solar Panel /300 watt poly crystalline PV module for solar home system, commerical, industrial roofs.

Solar energy products are a trend and good way to achieve zero home bills or commercial invest in the future.

So choose a good solar panel is important.

The key factors to consider when comparing solar panels are performance (they should produce the power that the rating leads you to expect), quality, durability and beneficial warranty terms.

250W 300W Poly Solar Panel Characteristics 1) high reliability with guaranteed +/-3% output power tolerance 2) The modules can withstand high wind-pressure, snow loads and extreme temperatures 3) Bypass diodes to minimize power loss with shading 4) High and stable conversion efficiency to ensure the highest quality A Grade Polycrystalline Silicon Solar Cell 1) Fomat: 1560.5mm, diagonal 2001.0mm 2) Average thickness: 195m 20m 3) Front(-): 1.5mm bus bars(silver) Blue anti-reflecting coating(silicon nitride) 4) Back(+): 2.5mm wide soldering pads(silver) Back surface field(aluminum) Quality and Warranty For a period of twentyfive (25)years commencing on the Warranty Start Date, loss of power output of the nominal power output measured at Standard Test Conditions (STC) for the Product(s) shall not exceed: For Polycrystalline A grade solar cell, 3% in the first year, thereafter 0.66% per year, ending with 81% in the 25 th year after the Warranty Start Date; The Warranty Start Date shall be defined as the date of the Bill of Lading date 10Years Manufacturing Warranty 15Years Warranty 90% Power Output 25Years Warranty 85% Power Output Product Information - - - - Electrical Characteristics | ITEM NO.

| KL-250W-P | KL-300W-P | KL-320W-P | Maximum Power at ST(Pmax)W | 250Wp | 300Wp | 320Wp | Maximum Power Voltage(Vmp)V | 30.8V | 36.4V | 37.6V | Maximum Power Current(Imp)A | 8.12A | 8.24A | 8.51A | Open Circuit Voltage(Voc)V | 37.6V | 42.3V | 45.8V | Short Circuit Current(Isc)A | 8.94A | 8.92A | 9.21A | Cell Efficiency(%) | 17.50% | 17.50% | 18.83% | Module Efficiency(%) | 15.37% | 15.54% | 16.58% | Size of Module (mm) | 1640*990*40 | 1950*990*45 | Number of Cell(PCS) | 60(6*10)PCS | 72(6*12)PCS | Weight(KG) | 18.5KG | 23.4Kg | Solar Cell | Poly 156*156 | Power Tolerance | 0~+3% | - - - - - - - - Components & Mechanical Data | Front Glass Thickness (mm) | High Transparency Tempered Glass 3.2mm | Junction Box Type | Pass the TUV Certificate PPO(Black/IP65) | Output Cables | 4mm/0.9m | Frame (Material Corners, etc.

) | Aluminum-alloy | Encapsulation Material | EVA(0.500.03 mm thickness) | Back Foil | White TPT(0.500.03 mm thickness) | Fixing Adhesive | Silicone Sealant ( White) | Temperature Range (C) | -40C to +90C | Max Load Capacity(Kpa) | 2.4wind load/5.4 snow load | - - - - - - - - | | | | - - - - Warranty .

12-year material and workmanship warranty .

12 years for a guaranteed minimum benefit of 90% .

25 years for a guaranteed minimum benefit of 80% Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional) Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip designtensile strength > Seal-lip designglue injection Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life EVA anti-aging EVA, excellent weathering resistance TPT Product field: 1 - Gird-connected power generation system 2 - Off-grid power generation system 3 - Building-integrated power generation facilities

Company Contact:

• Posted By: Ningbo Kelan Solar Electric Co., Ltd.

• Phone: 86-574-86768338

• Address: 9, xinyi road, xienan industrial zone, daxie development zone, Beilun, Ningbo,China, Ningbo , Zhejiang , China

• Email:

• Website: https://www.monocrystalsolarpanel.com

• Business Description: Kelan Solar, established in 2008, is a professional green power producer of solar panel and solar module in Ningbo, China.

  Our main products are 2 -350 watt mono crystalline and poly crystalline silicon solar panels in standard or special sizes and shapes.
