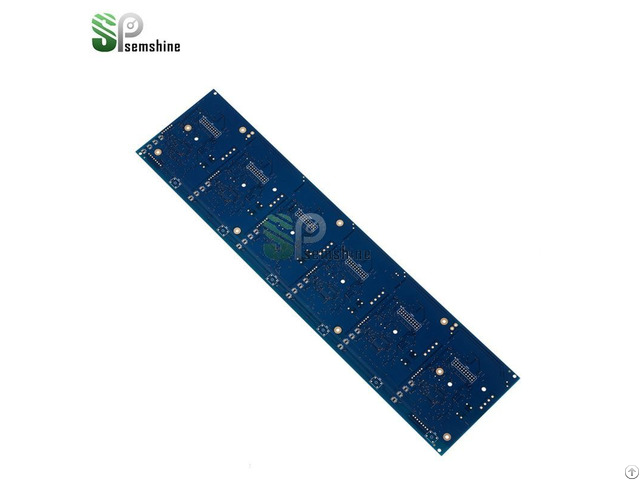

High TG HASL Lead Free 2 Layers PCB Board SEMSHINE

Product Description

1 - Introduction

As a kind of Double-sided Fr4 pcb, it is widely used in Server, Instruments, Consumer electronics, Automotive electronics etc.

Lead-free DSC Tg>170℃

Excellent thermal reliability

Low Z-CTE

Anti-CAF capability 2 - Material: High TG Fr4 Laminate pcb

Test Item Test Method

(IPC-TM-650) Test Condition Unit Specification Typical Value

Thermal Thermal

Stress 24.13.1 Float 288℃/Unetched Sec ≥10 ≥240 Glass Transition

(Tg) 2.4.25 E-2/105 DSC ℃ ≥10 175 CTE/ Z-Axis Expansion 2.4.24 Alpha 1 ppm/℃ ≤60 40 Alpha 2 ≤300 230 50 - 260 ℃ % ≤3.0 2.6 X/Y CTE 2.4.24 40℃ - 125℃ ppm/℃ —— 12/15 T-260 2.4.24.1 TMA min ≥30 ＞60 T-288 2.4.24.1 TMA min ≥15 ＞35 TD(5% weight loss) 2.4.24.6 TGA ℃ ＞340 349 Flammability UL94 E-24/ 23 Rating V-0 V-0

Electrical Surface Resistivity 2.5.17.1 C-96/35/90 MΩ ≥104 4.2*108 Volume Resistivity 2.5.17.1 C-96/35/90 MΩ-cm ≥106 6.5*109 Dielectric Breakdown 2.5.6 D-48/ 50+D0.5/ 23 kV ≥40 ≥45 Dielectric Constant 2.5.5.2 Etched

(RC 50%)

@ 1 MHz

@ 1 GHz — ≤5.4 4.8 4.6 Loss Tangent 2.5.5.2 Etched

(RC 50%)

@ 1 MHz

@ 1 GHz — ≤0.035 0.015 0.016 CTI IEC60112 A V —— ＞175 Arc Resistance 2.5.1 D-48/ 50+D-0.5/ 23 Sec ≥60 129

Mechanical Peel Strength (1 oz.

) 2.4.8 125 ℃ N/mm ≥0.70 1.2 Float 288 ℃/ 10 Sec ≥1.05 1.3 After Process Solution ≥0.80 1.1 Flexural Strength 2.4.4 Length Direction N/mm2 ≥415 540 Cross Direction ≥345 480 Moisture Absorption 2.6.2.1 D-24/23 ≤0.5 0.09

3 - Certification: UL, ROHS, Reach, ISO

4 - Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.

5 - What exhibitions have we participated?

New Delhi Exhibition, Moscow Electronic Exhibition etc.

6 - Our Services

1 - Quick response

2 - Reasonable price based on good quality

3 - Provide one-stop service (components, OEM)

4 - Abundant inventory & Habitual material preparation 7 - Payment method:

T/T, Paypal, credit card, Western Union etc.
