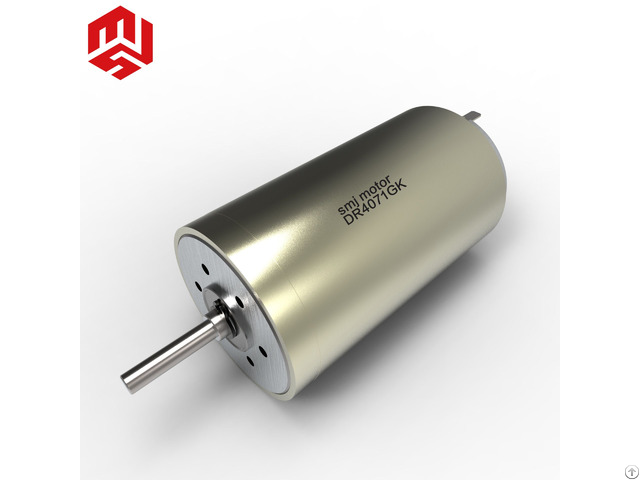

Dr4071gk High Torque Density 48v Coreless Dc Brushed Rotary Motor For Robotics - China

Series: DR4071GK

DR4071GK High torque density 48V coreless DC motor brushed DC motor for Robotics brush rotary motor Warranty: 3months-1year


Pl ace of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Car, Electric Bicycle, SMART HOME, automation and robotics

Type: Brush Motor

Torque: 220mNm

Const ruction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 7000r mp

Continuous Current(A): 2.65-6.06A

Eff iciency: IE 1

Torque max: 220mNm

Stall Torque: 1246mNm

Diameter: 4 0mm

Length: 72.3mm

Motor type: Ironless

Brush type: graphite brushes (made in Japan)

Certification: CE

C oreless DC motor Application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office

equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.

Important: Please email us to get the detailed specifications
