Dual Compartment Magnetostrictive Level Transmitter - China

price: 1000.00 Dollar US$

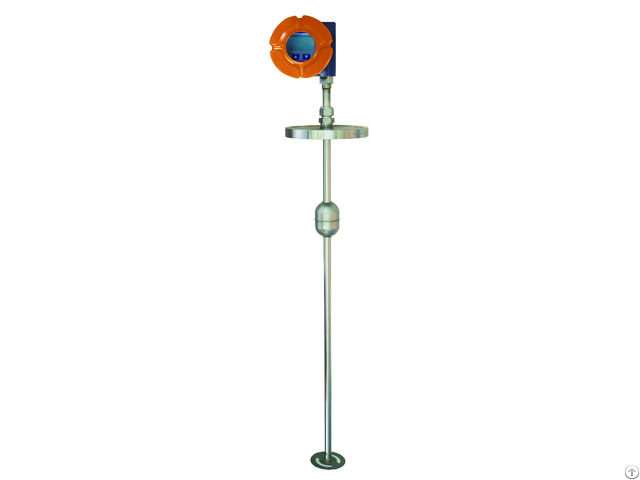

Dual Compartment Magnetostrictive Level Transmitter

Products Photos Catalog Dual Compartment Photos Catalog

Measurement: Liquid level and/ or interface

Repeatability: ±0.38 mm or 0.01% of full range(whichever is greater)

Nonlinearity: ±0.79 mm or 0.02% of full range(whichever is greater)

Accuracy: ±0.38 mm or 0.01% of full range(whichever is greater)

Power Supply: 16~30VDC, reversed polarity protection

Environment Temperature: -40~151℉(-40~66℃)

Display: LCD

Signal Output: 4~20mA/ HART/ ModBus/ ProfiBus

Maximum Loop Resistance: 620Ω(24DC)

Maximum Power Consumption: 0.65 W

Damping: 0.4~32s

Explosion Proof: Ex ia IIC T4, Ex d IIC T6

Protection Grade: IP66/ IP67

Resolution: Analog: 0.01 mA;

Digital: 0.01 unit

Error Signal: 3.61 mA or 20.96 mA

Humidity: 0~100%

Housing Structure: Dual compartment

Housing Material: Casting aluminum/ Stainless steel

Housing Surface Treatment: Enamel polyester painting (Only for casting aluminum housing)

Electrical Connection: 1/2” NPT (F)/ M20×1.5


Company Contact:


  • Phone: 0086 84440008

  • Address: Building A, 2# Workshop, Fanghezhengyuan Industrial Park, Tongzhou Industrial Development Zone,, Beijing , Beijing , China

  • Email: Email


Published date: August 26, 2016 - Modified date: August 31, 2016

  • Business Description: SWISA is a Sino-Canada joint venture specialing in manufacturing magnetic level gauge and magnetostrictive level transmitter.

    High temperature, high pressure, low temperature & cryogenic, hugh measuring range and other harsh working conditions.
