Elevator Hall Effect Sensor Under Cabin Overload Relay Output Magnet Switch - China

1)Hall Proximity Sensor

2)Elevator Overload Weighing Device

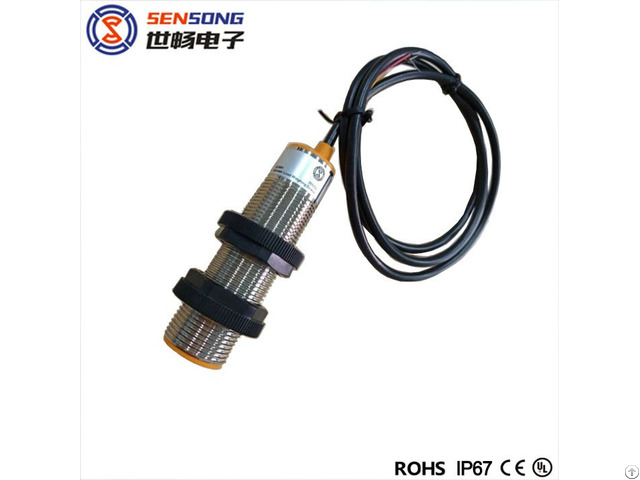

3)M14 diameter Elevator Hall Effect Sensor Under Cabin Overload Relay Output Magnet Switch

SENSONG brand Hall Effect Elevator Overload Sensor Weighing Device is applicable to all elevators with moveable car platform in need of overload signals.

This Elevator Overload Sensor device is of extremely high performance-price ratio.

This appliance is to overcome the inherent disadvantage of the mechanical overload sensor switch and to replace it.

• Working Principle

The Elevator Overload Sensor weighs the elevator car load based on the principle of the elasticdeformation of movable elevator car platform caused by loading with the HALL sensor measuring the change of displacement, fulfilling the aim of load weighing.

• Main Property

1 - Working in a contactless and inductive way.

No mechanical movement itself.

Being directly installed in the original place

of overload switch.

No necessity of changing the mechanism of elevator car.

2 - Adopting strong inductive magnet, improving the anti-interference of the system to the utmost.

3 - The electrical property is in compliance with the standard of the International Electrotechnical Commission (IEC).

4 - More accurately positioning, small overall size, easy installation and adjustment, simple structure and low price.

• Adjustment

1 - Please refer to the above figure to install this Elevator Overload Sensor device with the connecting support (made

by the customer himself) close to the middle part of the car platform as near as possible.

2 - Let the magnet adhesive on the car platform with the marking-face right facing the induction point of the Overload Sensor device.

3 - Install and adjust this device so that the magnet on the car platform aims at the center point of its upper face.

Meanwhile, assure the end face of this Elevator Overload Sensor device in parallel with that of the magnet.

4 - When elevator is of rated loaded, adjust this sensor device up and down to make the indicator just turn from dark to bright

(or oscillating), at this time, fasten this device and the adjustment is finished.

• Technical Specification



Application Range Applicable to all elevators with moveable car platform in need of overload signal with a inspection clearance of 8-15mm.

Sensitivity Overload turning point ≤Rated load adjusting point ±0.05mm

System Error ≤1.5% (5~40ºC)

Output Mode 1 pair of relay dynamic CLOSE or dynamic OPEN contacts

respectively with the capacity of DC/AC 48V/500mA.

Ambient Temperature -25 ~ +45ºC

Power Supply AC/DC 24V( ±10%)/15mA.

The operating current of the whole machine ≤100 mA.

Install Position Moveable elevator car platform

Overall Size Column of Ø24x83 mm

• Technical Specification Wire Function Explanation

Red, Black System Operating Power AC/DC24V(±10%)/100mA

Yellow, White Overloading relay

dynamic CLOSE contact Contact Capacity:

DC/AC 48V/500mA

Brown, Green Overloading relay

dynamic OPEN contact Contact Capacity: FAQ

What is our MOQ?

Sample: 1pcs (charged) Order: 100 pcs OEM item: Depends on your Qty.

How to purchase SENSONG inductive / capacitive /photoelectric sensors?

Step-1) Please tell us the model No.

you are interested in, Quantity, sensing distance, out put function and other specification

Step-2) Please tell us your installation environment, working temperature, we could recommend the most suitable products.

Step-3) Proforma Invoice with order details as your requested will be sent to your mailbox, goods will be delivered upon receipt of your full payment and shipping instruction
