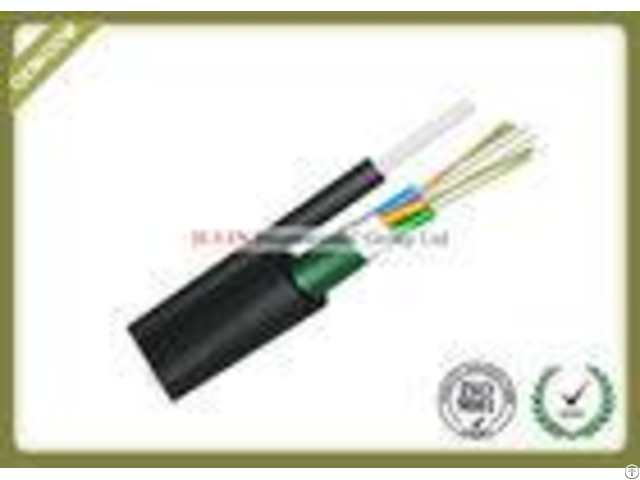

Figure 8 Self Supporting Outdoor Fiber Optic Cable For Aerial With Steel Tape - China

6-144 Core GYTC8S Figure 8 Self Supporting Outdoor Fiber Optic Cable for aerial Product Description Outdoor aerial optical fiber cable is a kind of transmissions cable which is especially designed to be hung on the poles.

Abiding by the existing overhead principles, aerial optical cable is commonly applied to WAN/LAN telecommunication.

Different types can be installed as either catenary or self-supporting.

Purchasing Risk Many domestic small factories used inferior or waste optical fibers to imitate A-grade optical fibers, non-woven fabrics as water-blocking tapes, waste electric-wires and rubber slippers smashed as raw materials for the outer sheath of cable.

Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack and water seepage of the cable jacket, etc.

For the recent years, there are many cases that many overseas customers who bought such inferior cables from China were frustrated to find that the cables can not be used after constructing.

Its not workable to return them to China as the Chinese government will levy high import duty on optical fiber cables.

The customers cannot claim for any compensation and suffered huge losses.

The fibers are placed in a loose tube made of high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A steel wire locates in the center of core as a metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

This kind of cable is specifically applied for self-supporting aerial installation.

Cross Section: Features: Accurate fiber excess length ensure a good performance of tensile strength and temperature.

High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.

The following measures are taken to ensure the cable watertight: Steel wire as the central strength member Loose tube filling compound 100% cable core filling PSP enhancing moisture-proof Application: Suitable for aerial, pipeline laying method.

Adopted to outdoor distribution.

Long distance and local area network communication.

Packing: Label will be sticked at wooden drum, include style of optical cable and fiber account, length, Gross weight KGS, Total drums amount, manufacture date Packing: Production: Certification:
